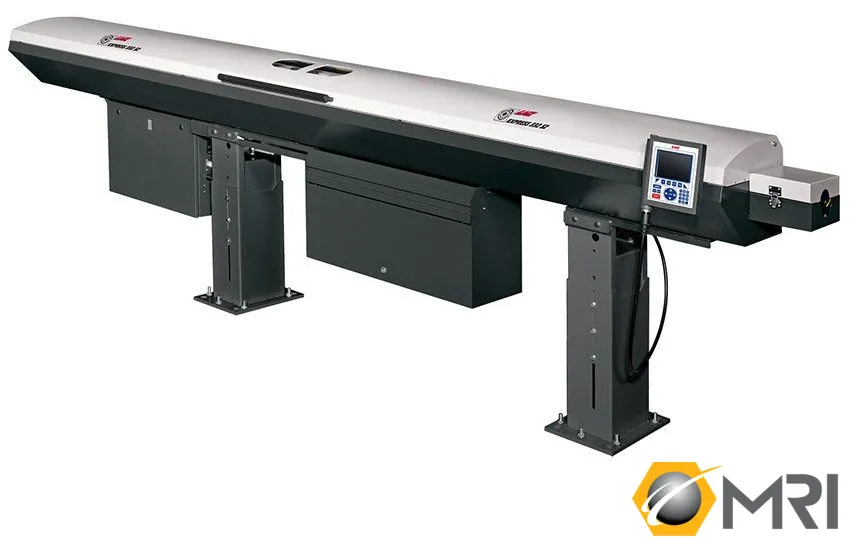

New LNS Hydrobar Express 332 S2 Magazine Type Bar Feed
a 5% surcharge may apply from LNS to cover additional expenses due to logistics during COVID
GENERAL SPECIFICATIONS AS PER BROCHURE
Bar Diameter Capacity: .125" - 1.250" (Swiss machines or fixed
headstocks w/out bar end preparation)
.125" - 1.375" (fixed headstocks or
Swiss machines w/bar end preparation)
Max. Bar Length Capacity: model 6' - 6'6" (2300 mm)
model 12' - 12'6" (3850 mm)
Bar Feed Z-axis Retract: 20" (500 mm)
Min. Bar Length Capacity: all models: 48" (1200 mm)
Hydraulic Oil: 21 US gallons (80 liters); ISO 100 grade
Bar Reload Time: 43 seconds w/remnant removal
Max. Remnant Length Removal: 20" (500)
Max. Feed Rate: 4,000 IPM
Max. Pushing Torque: 50N/meter
Retract System: yes
Changeover Time: 2 minute partial changeovers
8 minute complete changeovers
Air Supply: 80 - 100 psi of shop air
Electrical Requirements: System wired to 230/380/420/480 volts
AC 3 phase, max. 3 amp
Control Voltage: 24V DC
Rack Capacity: 11.6" (295 mm) wide
Shipping Weight (approx.): 3,648 lbs
Equipped with:
(1) guiding channel with pusher
(1) reduction tube or spindle liner
(1) remnant retract collet
20" "Z" axis retract for barfeed movement
automatic front stabilizer bar support
compact telescopic swiss safety connection
remnant retract
custom electrical cable package w/ plugs
Performance packages -
designed to allow for superior performance at higher spindle speeds
Base Unit equipped to cover the following lathe capacity:
3/4" (20mm) lathe capacity (complete package)...................$ 44,165.00
Including: 3 Guiding channels (23, 17 & 11 I.D.), 3 collets, 2 reduction tubes
or spindle liners
1" (25.4mm) lathe capacity (complete package).................. $ 47,070.00
including: 4 Guiding channels (29 & 21 & 17 & 11 I.D.),4 collets, 3 reduction
tubes or spindle liners
1-1/4" (32mm) lathe capacity (complete package)................$ 47,070.00
Including: 4 Guiding channels (35 & 29 & 23 & 17 I.D.),4 collets, 3 reduction
tubes or spindle liners
Optional accessories (Subject to change without notice):
guide channel set, including one pusher......................$ 2,035.00
remnant collet (one collet required for each size bar)
.078" - .437": $ 115.00
.438" - .868": $ 140.00
.869" - 1.249": $ 170.00
1.250" - 1.873": $ 275.00
cone pusher (remnant ejected thru front, one per bar size)....$ 190.00 ea
stabilizer insert for hex or square bar stock................$ 375.00
(one insert required for each size bar)
T-Tube Liner ................................................$ 160.00
Classic HMI..................................................$ 550.00
Extended front stabilizer including one hydrostatic:
guiding sleeve............................................$ 3,875.00
Additional hydrostatic guiding sleeve for extended front
stabilizer (sized to pusher diameter).....................$ 385.00
2-position Z-axis retraction system..........................$ 1,340.00
e-Connect interface capability............................... POR
Installation (USA)...........................................$ 3,450.00
Installation (Canada & Mexico) ..............................$ 4,150.00
