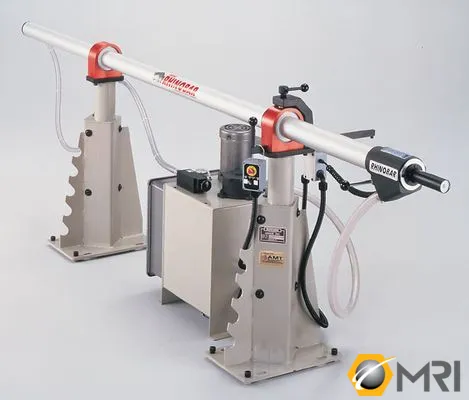

New Lexair Mini Rhinobar Hydrodynamic Bar Feed

GENERAL SPECIFICATIONS AS PER BROCHURE

Bar Capacity: 1/16" - 1 5/8"
Maximum Bar Length: 12'
Motor: 1 hp / 1,725 rpm
Electrics: 208/220/440 3 phase
Overall Length: 17'
Pump Motor: 1 hp
220/440 volts/3phase
MINI RHINOBAR Features
Engineered for Swiss style CNC screw machines & small fixed headstock lathes
Feed tube change-over in under five minutes
Standard Z axis capability
Positive, pusher retention system
Heavy duty construction for maximum rigidity and vibration prevention
Unique swing-out mechanism for ease of reloading bar stock and feed tube change-over
Removable pendant for convenient operator control

Quality and utility are the basis of the MINI RHINOBAR bar feed and no effort has been spared
to insure that the end product will provide the service you require.

Pries subject to change without notice ***

MRB 1.62 - 12' 1⁄8” - 15⁄8” x 12’ $19,600.00
MRB 1.62 - 6' 1⁄8” - 15⁄8” x 6’ $19,100.00

Additional feed tubes (available in 1/8" increments from 1/4" - 1 5/8"
1/4",5/16",3/8",1/2",5/8",3/4",7/8",1",1-1/16",1-1/8"
1-1/4",1-3/8",1-1/2",1-5/8"............................$1,700.00 each
1/8" & 5/32" feed tube kit.............................$3,000.00 each
Optional Spindle Liners:
Any size matching Feed tube sizes.........................$675.00 each
** note: all bar stock must have a 30 degree chamfer cut on the pusher
to achieve the highest performance.
Optional custom electrical cable package with plugs:
required if OEM interface includes special plugs instead of terminal
strip................................................$500.00 each
Optional front mounted safety switch:
for use on swiss screw machine applications............$720.00 each
Electrical lathe interface:
lathe must have programmable open & close of chuck and an appropriate
interface provided by the lathe manufacturer.
Optional Step Down Transformer for Lathes Operating on 440V. $POR
Installation.................................................$4.000.00
Includes: Set-up and leveling of the bar feeder, alignment with lathe
spindle and bolting to floor (bolts included), electrical
connection to lathe, (interface supplied by builder), training
and run-off of the bar feeder. proper training and run-off
depend on the lathe being operational, tooled & programmed, as
well as stock & machine operator being available.
Note: Additional time, travel & expenses caused by customer, dealer or OEM
delays will be billed at $180/hour on site, $100/hr travel plus
expenses.

Warranty - One year, parts and workmanship

Electrical Lathe Interface - Lathe must have programmable open & close of chuck and an appropriate interface provided by
the lathe manufacturer. If an interface is not available, please contact Lexair and we will work with the lathe manufacturer or
quote the cost to develop an interface where possible.

Installation - The standard installation includes set-up and leveling of the bar feeder, alignment with lathe spindle and
bolting to floor (bolts included), electrical connection to lathe, (interface supplied by builder), training and run-off of the
bar feeder.

Proper training and run-off depend on the lathe being operational, tooled and programmed, as well as stock and machine
operator being available

Delivery: 6ft. approx 3-4 weeks
12ft.approx 3-4 wees
