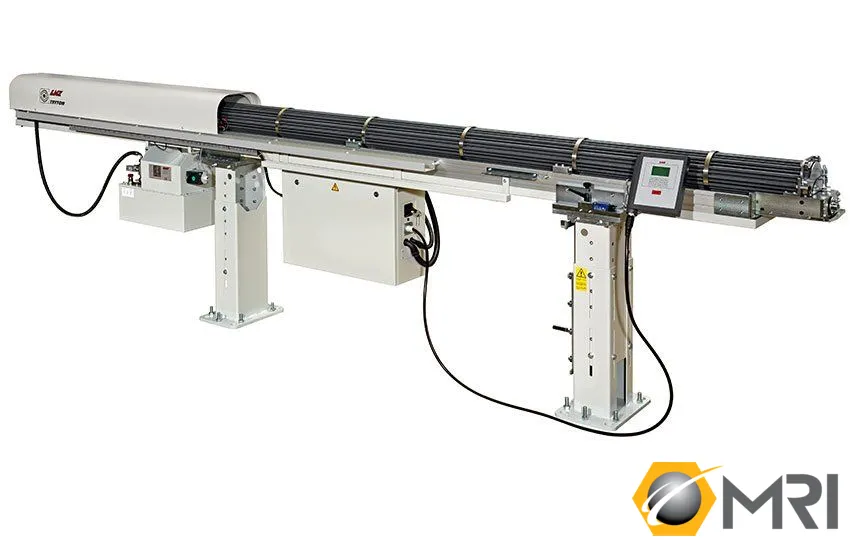

New LNS Tryton 112 Gatling Style Bar Feed
a 5% surcharge may apply from LNS to cover additional expenses due to logistics during COVID
General Sepcifications:
Max Diameter Capacity: .500"
Hydraulic Oil: 25 Lliters
Air Supply: 80 - 100 psi
Shipping Weight: 2,050 lbs
Equipped With:
Remnent Retraction System
Self Measurement of the Top-Cut Positioning
2 Minute set up for partial changeovers
8 minute of less for complete changeovers
Prompting remote control
Manually loaded guide tubes
Rear loading on the fly
Hydraulic Headstock Synchronization
Integrated Hydraulic System
choice of one "Standard" Barrel with machine
Standard Barrels
Number of Guide Tubes Bar Stock Range Bar Stock Range
with Preparation w/o Preparation
--------------------- ----------------------- ------------------------
45 tubes: 6.4mm ID 0.039 - .197" 0.039 - .157"
36 tubes: 8 mm ID 0.039 - .276" 0.039 - .236"
24 tubes: 11 mm ID 0.117 - .393" 0.117 - .314"
24 tubes: 14 mm ID 0.157 - .500" 0.157 - .393"
Tryton 112 with "Combo" Barrel, Including One "Combo" Barrel
and Remnant Retract.............................................. $40,550.00
Combo Barrels
Number of Guide Tubes Bar Stock Range Bar Stock Range
with Preparation w/o Preparation
--------------------- ------------------------ -----------------------
14 tubes: 6.4 mm ID 0.039" - .197" 0.039" - .157"
14 tubes: 11 mm ID 0.117" - .393" 0.117" - .314"
14 tubes: 8 mm ID 0.039" - .276" 0.039" - .236"
14 tubes: 14 mm ID 0.157" - .500" 0.157" - .393"
Optional Accessories (Prices subject to change without notice):
---------------------
Remnant retract collet (one required for ea bar stock size ...... $ 135.00ea
Extra barrel - specify size(s)................................ CONSULT FACTORY
Joint pipe or spindle liner...................................... $ 360.00ea
310mm extension.................................................. $ 3,530.00ea
Long remnant disposal kit........................................ $ 780.00ea
Dual Channel Safety Circuit Protection (DCS)..................... $ 535.00
Installation (USA)............................................... $ 3,450.00
Installation (Canada & Mexico) .................................. $ 4,150.00
