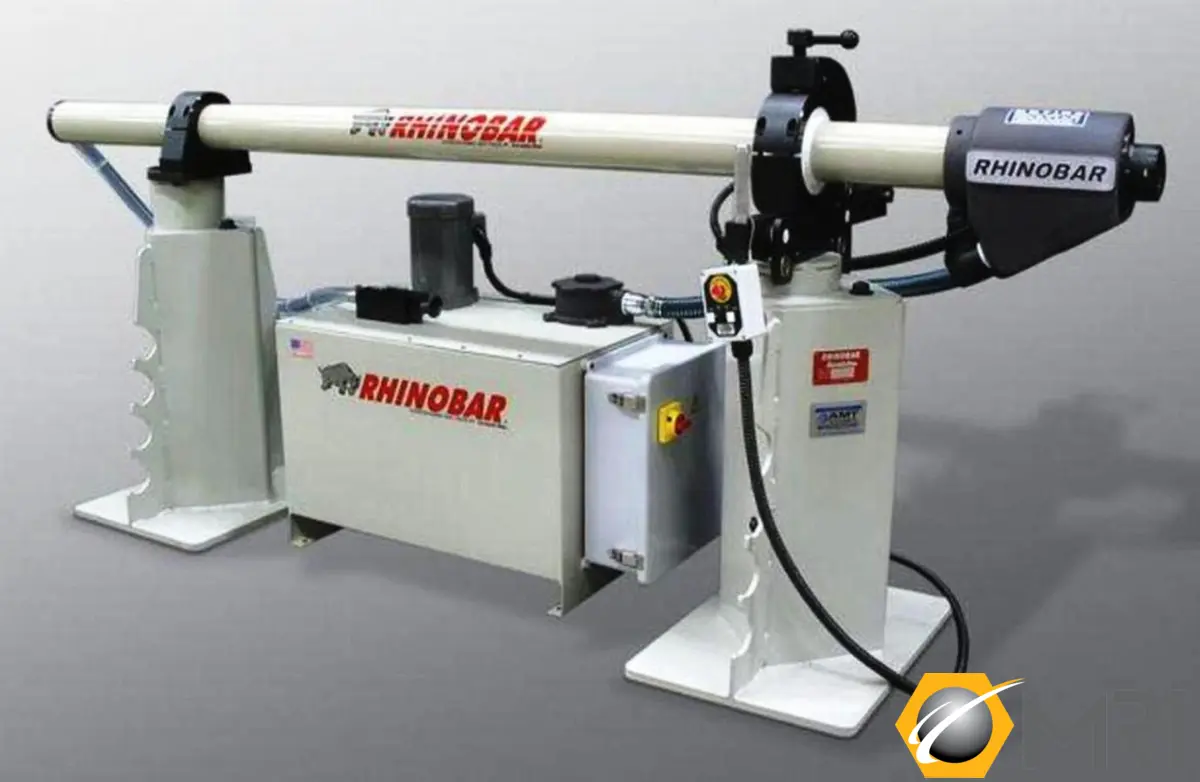

New Lexair Rhinobar RB 2.5 Hydrodynamic Single Tube Bar Feed

General Specifications from Brochure

Features: Single tube
Muzzle-loaded design
Capacity: 2 1/2" maximum
Length: 12'
Interchangeable feed tubes
= Three (3) feed tubes of customer selected sizes are included

Pump Motor: 1HP, 220/440 volt, 3 Phase
Overall Length: 18' (12' capacity model)
12' ( 6' capacity model)
Weight: 1700 lbs.

*** Prices subject to change without notice ***

Additional Feed Tubes - available in 1/4" increments to 3" and priced as
follows:

1/4",5/16",3/8",1/8",5/8",3/4",7/8",1",1-1/16",1-1/8"
1-1/4",1-3/8",1-1/2",1-5/8",1-3/4",2",2-1/4",2-1/2",2-5/8",2-3/4",3"
..............................................................$1,725.00 each

Optional Spindle Liners - Each spindle liner size is priced as follows:
NOTE: Prices based on Lathe Draw tube I.D., not stock size.
1/4" thru 2-1/8" $700.00 each
2-1/4" thru 2-5/8" $700.00 each
2-3/4" thru 3-1/8" $715.00 each
3-1/4" thru 4-1/8" $980.00 each
4-1/4" thru 5-1/8" P.O.R.
5-1/4" thru 6-1/8" P.O.R.

For lathes with spindle bore to 3-1/8" that require
a spindle adapter add P.O.R.
For lathes with spindle bore over 3-1/8" adapters: P.O.R.

Optional Standard Rhinobar Customer Electrical Cable Package
with plugs $500.00
(Required if OEM Interface includes special plugs instead of terminal
strip.)
Optional Step Down Transformer For Use with Lathes That Operate
on 440 Volts $P.O.R
(Required if OEM Interface includes special plugs instead of terminal strip)

NOTE: All bar stock must have a 30 degree chamfer cut on the pusher end to
achieve the highest performance.

Warranty - One year, parts and workmanship

Installation by Lexair Personnel $4,000.00
The standard installation includes set-up and leveling of the bar feeder,
alignment with lathe spindle
and bolting to floor (bolts included), electrical connection to lathe,
(interface supplied by builder), training and run-off of the bar feeder.

Proper training and run-off depend on the lathe being operational, tooled and
programmed, as well as stock and machine operator being available.

NOTE: Additional time, travel and expenses caused by customer, dealer or OEM
delays will be billed at $180.00 per hour on site, $100.00 per hour travel plus
expenses.

Delivery: approx 6-8 weeks
