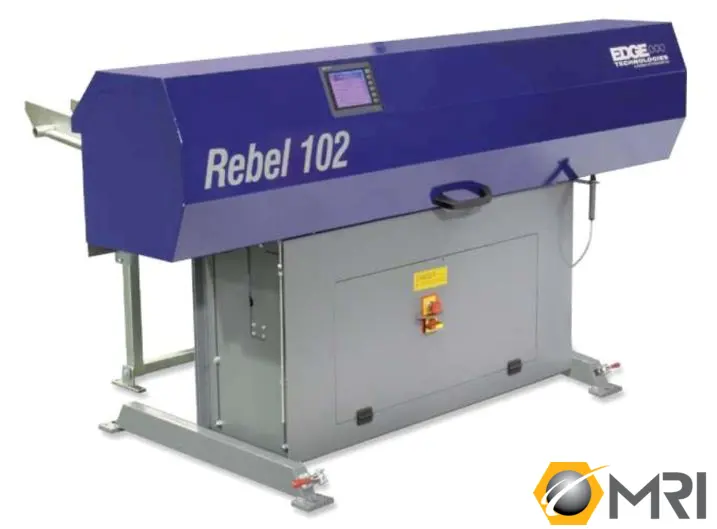

New Edge Rebel 102SE Magazine Type Bar Feed

General Specifications As Per Brochure

Bar Diameter: 8 mm to 102 mm (.315" to 4.00")
Bar Length: 60" (not to exceed spindle length
Magazine Rack Capacity: 30"
Bar Loading Cycle Time: 18 Seconds
Power Consumption: 1 kW
Operating Voltage: 230V 60 Hz - 3 Phase
Control Voltage: 24V DC
Weight (approx): 1,100 lbs
Dimensions: 77" x 54" x 55"

Includes:
(2) pushers (10MM & 19MM)
(1) custom lathe cable & male interface plug

Optional Accessories - Prices Subject to Change without notice:
Installation USA: $3000.00

Spindle Liners: $ 850.00
6mm pusher for 8-10mm diameters $ 500.00
Dual Channel Saftey Kit $ 500.00
High voltage kit $ 750.00
req'd on some lathes
V Tray Kit: $ 600.00
required when gap on lathe between spindle and sheet metal
Extended V Tray Kit $1650.00
reqd on lathes that have gap between sheet metal & spindle that exceeds 6"
(XL) Pusher kit: $2400.00
adds 500mm to pusher length
Serial Ethernet connection: $1800.00
Tall Stands For Lathes w/ Spindle $1350.00
Center Greater Than 1250mm
Risers req'd with Tall Satnds $1200.00
Center greater than 1350mm
Coolant Collector Ext Kit $ 550.00
req'd with extended liner

Bar Feeder installation does not include lathe-side software or hardware
interface. This interface must be supplied and installed by the lathe
OEM or dealer prior to bar feeder installation.
