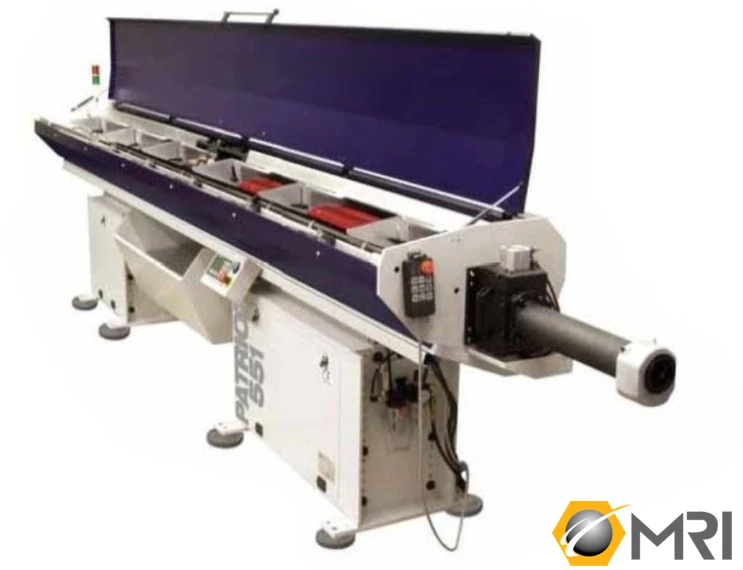

New Edge Patriot 551 Magazine Type Bar Feed
General Specifications per Manufacturer
Bar Capacity:
No Prep: 5mm to 44.5mm (.196" to 1.75")
With Prep: 5mm to 51 mm (.196" to 2.000")
Maximum Bar Length: 12'6"
Minimum Bar Length: 39.4"
Maximum Remnant Length: 16"
Magazine Rack Capacity: 12"
Bar Loading Cycle: 30 seconds for 12' bar
Material Straightness Specifications: .007"TIR/ft of material
(V Blocks, 3 points equidistant)
Feed Force (pusher torque): max 450N, adjustable
Foward Feed Rate: 750 inches/min max, adjustable
Return Feed Rate: 1000 inches/min max, adjustable
Power Consumption: 1.5kW
Operating Voltage: 230V/60 Hz - 3 phase
Control Voltage: 24V DC
Oil Capacity: 57 liters (15 gallons)
Oil Viscosity: ISO 150cST
Compressed Air Supply: 6 bar (90 psi)
Compressed Air Consumption: approx. 8 liters/loading cycle
Weight (approx): 2,100 lbs
Dimensions (approx.): 16' x 2' x 4.25'
Includes:
(1) Guide channel set of your choice (channel sections, pusher & revolving
tip
(1) Front nose to match guide channel
(1) Barstock collet
(1) Outboard anti-vibration device bushing
(1) Custom lathe cable & interface plug
Patriot 551 12' 2 Guide Channel Set Complete Package
Includes (2) channel sets, (2) pushers, (2) Hard noses, (2) Pusher Collets,
(2) Sets of Bushing Blocks: $38,400.00
Patriot 551 8': $33,000.00
Patriot 551 8' 2 Guide Channel Set Complete Package
Includes (2) Channel Sets, (2) Pushers, (2) Hard Noses, (2) Pusher Collets and
(2) Sets of Bushing Blocks: $36,500.00
Optional Accessories - Prices subject to change without notice:
Installation USA: $3450.00
Additional Guide Channel Set: $3750.00
(includes pusher, revolving tip, nose liner & spindler liner)
Spindle Liner: $ 580.00
(needed when selecting a guide channel set other than lathes max. cap. set)
Bar Stock Pusher Collets:
Up to 51mm: $185.00 each
Bushing Blocks for outboard Anti-Vibration device
(1) set includes upper & lower pieces: $175.00 each
Dual Channel safety kit $500.00
CSA kit (Canadian Standard Association) $1,000.00
High Voltage Kit (required for some lathes):$ 750.00
Serial interface Ethernet connection $1,800.00
Axial Shift Kit w/ Safety Switches $2,000.00
Long Pusher Kit $2,600.00
Tall Stands $2,500.00
for lathes with center height over 1250mm
Master liner $ 650.00
required when undersizing barfeeder to lathe spindle (still requires spindle liner)
Bar Feeder installation does not include lathe-side software or hardware
interface. This interface must be supplied and installed by the lathe
OEM or dealer prior to bar feeder installation.
The anchoring of the FMB bar feeder to the floor is a requirement and will be
performed by the service technician.
