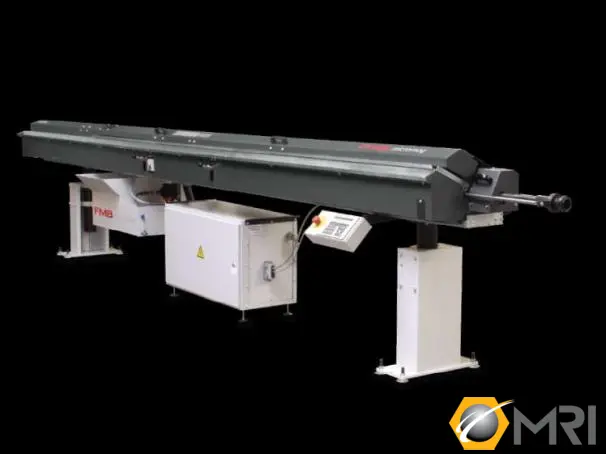

FMB Micromag 0.8-20 Magazine Bar Loader, 12'
For Fixed or Sliding Headstock
General Specifications As Per Brochure
Bar diameter capacity:
w/out prep: 0.8mm - 20mm (.031" - .787")
with prep: 0.8mm - 23mm (.031" - .905")
Max. bar length: 3800mm (12' 5")
Min. bar length: 1000mm (39.4")
Magazine remnant length: 420mm (16.5")
Magazine rack capacity: 7"
Bar loading cycle time: 17 seconds for 12' bar
Material straightness specification: .007" TIR/ft. of material
(V blocks, 3 points equidistant)
Feed force (pusher torque): max 300 N, adjustable
Forward feed rate: 710 IPM, adjustable
Return feed rate: 1420 IPM, adjustable
Power consumption: 1.5 kw
Operating voltage: 24V DC
Oil capacity: 50 liters (13.2 gallons)
Oil viscosity: ISO 100 cST
Compressed air supply: 6 bar (90 psi)
Compressed air consumption: approx. 3 liters per loading cycle
Weight (approx.): 1,950 lbs
Standard Features:
(1)Guide channel set to be chosen by customer.
Several sizes to choose from, each handling a specific stock range. See chart on next page.
(spindle liner required if channel set is not lathe’s max capacity)
(1) Universal telescoping front nose and
(1) nylon nose I.D. liner specific to pusher
(1) O.D. bar stock collet to be chosen by customer.(Specific collet needed for each stock diameter.)
Swiss headstock synchronization device
Automatic remnant retraction, self-centering gripper
Custom lathe cable and interface plugs
Polyurethane bushing blocks (2 pieces)
FMB Micromag 12' 2 Guide Channel Set Complete Package
Includes (2) Channel Sets, (2) Pushers, (2) Nose Liners, (2) Pusher Collets
& (2) Sets of Bushing Blocks: $42,400.00
Micromag 6' $38,500.00
Micromag 6' w/ 2 channel package $38,500.00
Optional Accessories - Prices are subject to change w/out notice.
Guide Channel (includes pusher, revolving tip, nose liner & spindle
liner): $ 3,000.00 each
Spindle Liner: $ 520.00 each
(needed when selecting a guide channel set whose max.
bar diameter is smaller than the draw tube of the lathe)
Bar stock pusher collets: $ 140.00 each
Hex Stock pusher collet contact Edge
Polyurethane bushing blocks:
(includes upper & lower pieces): $ 120.00 each
Long Pusher Kit $ 3,700.00
Axial Shift Device w/ Safety Switches $ 2,900.00
Dual Channel safety kit $ 500.00
40 Bar Kit (2.2mm max diam) $ 1,900.00
Moveable Anti-Vibration Device $ 2,400.00
Master liner $ 650.00
- required when under sizing bar feeder to lathe spindle (still requires spindle liner)
Installation USA: $ 3,450.00
Bar Feeder installation does not include lathe-side software or hardware
interface. This interface must be supplied and installed by the lathe
OEM or dealer prior to bar feeder installation.
The anchoring of the FMB bar feeder to the floor is a requirement and will be
performed by the service technician.
