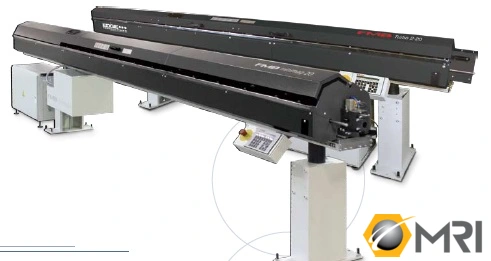

New FMB Turbo 2-20 Magazine Type Bar Feed
For Fixed or Sliding Headstock
General Specifications as per Brochure:
Bar Diameter Capacity:
w/out prep: .078" - .787" (2mm - 20mm)
with prep: .078" - .905" (2mm - 23mm)
Max. bar length: 3800 mm (12' 5")
Min. bar length: 1000 mm (39.4")
Max. remnant length: 420 mm (16.54"
Magazine rack capacity: 7"
Bar loading cycle time: 17 seconds for 12' bar
Material straightness specification: .007" TIR/ft. of material
(V blocks, 3 points equidistant)
Feed force (pusher torque): max 300 N, adjustable
Forward feed rate: 710 IPM, adjustable
Return feed rate: 1420 IPM, adjustable
Power consumption: 1.5 kw
Operating voltage: 230V/60hz 3-phase
Control voltage: 24V DC
Oil capacity: 50 liters (13.2 gallons)
Oil viscosity: ISO 150 cST
Compressed air supply: 6 bar (90 psi)
Compressed air consumption: approx. 3 liters per loading cycle
Weight (approx.): 1,650 lbs
Includes:
(1) Guide channel set of your choice (channel sections, pusher & revolving tip
(1) Universal telescopic nose w/ID liner
(1) OD bar stock pusher collet
(1) Custom lathe cable & interface plug
(1) Polyurethane bushing blocks (one set includes upper & lower pieces)
Swiss Headstock Synchronization Device
Automatic Remnant Retraction, Self Centering Gripper
FMB Turbo 2-20 12' 2 Guide Channel Set Complete Package
Includes (2) Channel Sets, (2) Pushers, (2) Nose Liners, (2) Pusher Collets &
(2) Sets of Bushing Blocks: $40,700.00
FMB Turbo 2-20 6': $36,800.00
FMB Turbo 2-20 6' 2 Guide Channel Set Complete Package
Includes (2) Channel Sets, (2) Pushers, (2) Nose Liners, (2) Pusher Collets &
(2) Sets of Bushing BlocksL $39,700.00
Optional Accessories - Prices Subject to Change:
Installation USA: $ 3,450.00
Additional Guide Channel Sets: $ 3,000.00 ea.
(includes pusher, revolving tip, nose liner & spindle liner)
Additional Spindle Liners: $ 520.00 ea.
(needed when selecting a guide channel set whose max. bar diameter is
smaller than the draw tube of the lathe)
Additional Bar Stock Collets: $ 140.00 ea.
Hex collets Contact Edge
Additional Polyurethane Bushing Blocks: $ 120.00 ea.
(1) set includes upper & lower pieces and is used in place of rollers
Long Pusher Kit $ 3,700.00
Dual Channel Safety Kit $ 500.00
Movable Anti Vibration device $ 2,400.00
Axial Shift Device with Safety Switches $ 2,900.00
Master liner $ 650.00
required when undersizing bar feeder to lathe spindle (still requires spindle liner)
Bar Feeder installation does not include lathe-side software or hardware
interface. This interface must be supplied and installed by the lathe
OEM or dealer prior to bar feeder installation.
The anchoring of the FMB bar feeder to the floor is a requirement and will be
performed by the service technician.
