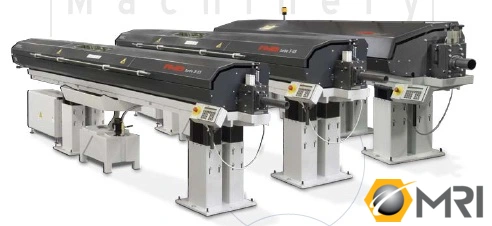

New FMB Turbo 5-65 Magazine Type Bar Feed

General Specifications as per Brochure:

Bar Diameter Capacity:
w/out prep: .196" - 2.362" (5mm - 60mm)
with prep: .196" - 2.559" (5mm - 65mm)
Max. bar length: 3800 mm (12' 5")
Min. bar length: 1000 mm (39.4")
Max. remnant length: 530 mm (20.8"
Magazine rack capacity: 11"
Bar loading cycle time: 30 seconds for 12' bar
Material straightness specification: .007" TIR/ft. of material
(V blocks, 3 points equidistant)
Feed force (pusher torque): max 750 N, adjustable
Forward feed rate: 2360 IPM, adjustable
Return feed rate: 0 - 1650 IPM, adjustable
Power consumption: 1.5 kw
Operating voltage: 230V/60Hz 3-phase
Control voltage: 24V DC
Oil capacity: 80 liters (22 gallons)
Oil viscosity: ISO 150 cST
Compressed air supply: 6 bar (90 psi)
Compressed air consumption: approx. 10 liters per loading cycle
Weight (approx.): 6,160 lbs

Includes:
(1) Guide channel set of your choice (channel sections, pusher & revolving
tip
(1) Universal hard nose with ID liner
(1) Custom lathe cable & interface plug

Prices subject to change without notice ******************************

FMB Turbo 5-65 12' 2 Guide Channel Set Complete Package: $61,000.00
Includes (2) Channel Sets, (2) Pushers, (2) Nose Liners & (2) Pusher Collets

FMB Turbo 5-65 12’ (with auto adjust system) $69,500.00

FMB Turbo 5-65 6’ (1 channel set) $52,900.00
FMB Turbo 5-65 6’ 2 channel set package $57,400.00

Optional Accessories - Prices Subject to Change:
Installation USA: $3,450.00

Additional Guide Channel Sets: $4,800.00 ea.
(includes pusher, revolving tip, nose liner & spindle liner)

Additional Spindle Liner: $780.00 ea.
(needed when selecting a guide channel whose max. bar diameter is smaller
than the drawtube of the lathe)

Additional Bar Stock Pusher Collets (specific collet required for each bar
diameter):
for channel set up to 20mm ID: $140.00 ea.
for channel set from 25mm to 38mm: $155.00 ea.
for channel set from 42mm to 45mm: $230.00 ea.
for channel set from 51mm to 55mm: $275.00 ea.
for channel set from 60mm to 67mm: $340.00 ea.

Polyurethane Bushing Blocks: $180.00 ea.
(1) set includes upper and lower pieces and is used in place of rollers in
standard steady rest when machining hex, square or profiled stock

Air Knife: $1,500.00
=(recommended to minimize bar feeder oil loss when running shafts)
Pusher Extension Kit: $1,700.00
Axial Shift Device: $5,000.00
Serial Interface: $2,700.00
Tall Stands: $1,900.00
for Lathes with Spindle Center Greater than 1200mm
Dual Channel Safety Kit $ 500.00
Master liner $ 650.00
required when undersizing barfeeder to lathe spindle (still requires spindle liner)

Bundle Loader Option Call Edge

Bar Feeder installation does not include lathe-side software or hardware
interface. This interface must be supplied and installed by the lathe
OEM or dealer prior to bar feeder installation.

The anchoring of the FMB bar feeder to the floor is a requirement and will be
performed by the service technician.
