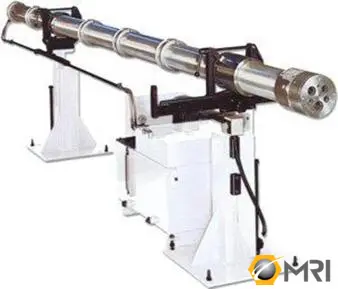

NEW LNS Super Hydrobar Bar Feed for Fixed or Sliding Headstock
General Specification per Brochure
The Super Hydrobar HS is a manual barfeeder for small, and medium production
runs. The diameter range is designed for camshaft controlled screw machines
and Swiss-style CNC machines. The Hydrobar HS offers maximum flexibility in
turning applications. The hydrodynamic support in totally enclosed guide tubes
provides high performance with high reliability.
Specifications
Diameter: ............................. .039"- 2-5/8" (.99 - 66.67 mm)
Bar length: ........................... 12' (max)
Loading system: ....................... Tube swing out system
Loading side: ........................ Right / left
Headstock type: ....................... Fixed / sliding
Total changeover: ..................... 1 min
Drive: ................................ Hydraulic pressure
Guiding: .............................. Hydrodynamic system
Option
Z axis retraction 8" or 23" (203.2 - 584.2 mm)
Model............ (Capacity)............. List Price.....Steel Spindle Liner Sets
HYS 3.12 HS - 4.8 (1/16" through 1/2")... $ 24,345.00....$ 805.00 (2/set)
HYS 3.20 HS - 4.8 (1/16" through 13/16"). $ 24,345.00....$ 805.00 (2/set)
HYS 3.26 HS - 4.8 (1/4" through 1")......$ 24,345.00....$ 805.00 (2/set)
HYS 6.32 HS - 4.8 (1/16" through 1-1/4"). $ 32,690.00....$ 2,140.00 (5/set)
HYS 6.38 HS - 4.8 (1/4" through 1-1/2").. $ 32,690.00....$ 2,140.00 (5/set)
HYS 6.42 HS - 5.2 (1/4" through 1-5/8").. $ 32,690.00....$ 2,140.00 (5/set)
HYS 6.45 HS - 5.2 (1/4" through 1 3/4")...$ 32,690.00....$ 2,140.00 (5/set)*
HYS 6.52 HS - 5.2 (1/2" through 2")...... $ 36,850.00....$ 2,140.00 (5/set)*
HYS 6.65 HS - 5.2 (3/4" through 2-1/2").. $ 36,850.00....$ 2,140.00 (5/set)*
HYS 6.68 HS - 5.2 (3/4" through 2-5/8").. $ 36,850.00....$ 2,140.00 (5/set)*
* Poly spindle liners available $1,750 per set
Installation: (USA)......................................$ 2,950.00
Installation: (Canada & Mexico)..........................$ 3,675.00
Retract Option:
HYS 3.12 thru HYS 6.38HS (23" travel)......................Standard
HYS 6.42 thru HYS 6.68HS (non stock, extended delivery)..$ 5,540.00
HYS 3.12 & 3.20 option advanced position end of bar......$ 1,285.00
HYS 6.32 option for advanced position end of bar.........$ 2,570.00
Dual Channel Safety Circuit Protection (DCS).............$ 535.00
Additional Spindle Liner ................................$ 530.00
Confirmation Ring .......................................$ 270.00
Tube sizes In SuperHydrobars
HYS 3.10 HS * 11-8-6 (no longer available - 2017)
HYS 3.12 HS 14-11-8
HYS 3.16 HS * 17-14-8 (no longer available - 2017)
HYS 3.20 HS 22-14-8
HYS 3.26 HS * 27-21-14 (no longer available - 2017)
HYS 6.26 HS * 27-24-21-17-14-8 (no longer available - 2016)
HYS 6.27 HS * 29-27-21-17-14-8 (no longer available - 2017)
HYS 6.32 HS 34-30-27-21-14-8
HYS 6.35 HS * 37-34-31-27-21-14 (no longer available 2016)
HYS 6.38 HS * 40-37-34-27-21-14 (no longer available - 2017)
HYS 6.42 HS 44-40-34-27-21-14
HYS 6.45 HS * 47-40-34-27-21-14 (no longer available - 2017)
HYS 6.52 HS 54-47-40-34-27-21
HYS 6.65 HS 67-60-54-44-37-27
HYS 6.68 HS 69-60-54-44-37-27
