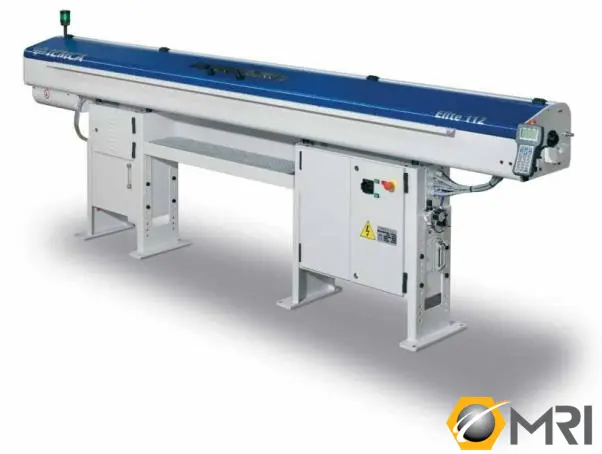

NEW Iemca Elite 112 Magazine Bar Feed

Click the link below to view a video demonstration of this machine:
http://www.youtube.com/watch?v=nbaS8lUKC70

General Specifications per Manufacturer

Bar Size Capacity: 0.7mm (.028") - 12.7mm (.500")
Bar Length Capacity: 12' (also avail in 6' version)
Maximum Bar Length: 12' 2"
Minimum Bar Length: 63" (15.75" available option)
Magazine Capacity: 16 bars up to .5" diameter,
20 bars up to .394" diameter,
28 bars up to .295" diameter.
Maximum Remnant Length: 15.75"
Operating Voltage: 230V AC 3 Phase (400V available)
Control Voltage: 24 Volts DC
Total Power Required: 2.5 kVA/1.8 kW
Compressed Air Required: 90 psi, 10 cfm
Guide Channel Oil: ISO FD10, quantity 10 gal. (not incl.)
Feeding Speed: 39"/sec (Adjustable)
Facing Accuracy: +/- .008"
Bar Change Time: 19 seconds for 12' bar
Bar Straightness Required: .007"/foot
Bar Feeder Shipping Weight: 1500 lbs.
Color: RAL 5002 Blue, RAL 7035 Light Gray

Prices (subject to change without notice)

Bar Feeder

Elite 112 Soft Touch 6 feet $33,990
Elite 112 Soft Touch 12 feet $34,990

All bar feeders include: standard electrical and mechanical interface to the
lathe, walking beam magazine, synchronization device, remnant retraction
system and 1 guide channel set (1 Guide Channel, 1 Bar Pusher, 1 Rotating Tip,
1 Telescopic Nose and 1 Collet)

Accessories

Anti Vibration Device $1,990
Axial shifting device (Z) (6 feet) $1,490
Axial shifting device (Z) (12 feet) $1,990
Category III interface (Dual Channel Safety Circuit Protection) $1,490
Special adaptation kit (Required for some lathes) $1,990

Options

Touch screen 7" panel $490
Additional guide channel set $2,490
Spindle liner $350
Additional collets $80
Kit for additional status lights $80
Tool box (only on 12+ feet) $990
Wet upgrade for laser swiss application $5,000
Kit for low stock signaling light $790
Kit for 1 mm bar loading $690
Kit for Industry 4.0 $2,990

Installation

Installation in USA, Canada and Mexico $3,300
Installation price includes labor, travel expenses, on site operator training
at the time of installation, 12 month parts and labor warranty

Important Notes:
Bar Feeder installation does not include lathe-side software or hardware for
magazine interface. This interface must be supplied and installed by the
lathe OEM or Distributor, prior to bar feeder installation. Bar straightness,
proper guide channel selections, correct alignment and anchoring of bar feeder
will ensure performance at maximum rpm.
