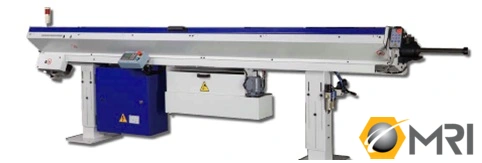

NEW Iemca Ideal 320 Magazine Bar Feed

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications
Bar Size Capacity: Round: 3-26mm (1/8" - 1")
Square: 3-22mm (1/8" - 7/8"
Hex: 3-18mm (1/8" - 11/16")
Bar Length Capacity: 1,000 - 3,700mm (3'3" - 12'2")
Remnant Length: 80-350mm (3.15" - 13.78")
Bar Weight: 18kg (80 lbs)
Bar Changeover Time: 33 Seconds (Lengths Over 3,200mm)
Feedrate: 420mm/sec (990 IPM)
Return Speed: 1,200mm/sec (2,830 IPM)

Barfeed Weight: 1,530 lbs
Compressed Air: 5-7 Bar (73 - 102 PSI)
Installed Power: 650w
MP Magazine Available: Single Rack 280mm (11.02")

Accessories
Anti Vibration Device: $2,990
Category III interface (Dual Channel Safety Circuit Protection): $1,490
Special adaptation kit (Required for some lathes): $1,990

Options
Additional guide channel: $2,490
Spindle liner: $450
Additional collet (standard OD threaded collet) (D < 20mm): $120

Installation

Installation in USA, Canada and Mexico: $3,300

CONDITIONS
Bar Feeder
Bar feeder price includes: standard electrical and mechanical interface to the lathe, Single Rack magazine, synchronization
device, remnant retraction system, front bushing device and 1 guide channel set (1 Guide Channel, 1 Bar Pusher, 1 Rotating
Tip, 1 Telescopic Nose and 1 Collet)

Installation
Installation price includes labor, travel expenses, on site operator training at the time of installation, 12 month parts and
labor warranty.
IEMCA recommends an authorized technician to perform the installation and operator training on your IEMCA bar feeder or
gantry loader system.
The installation price shown above is a net price for one (1) installation.
In order to provide effective and comprehensive bar feeder installation, training and run-off IEMCA requires the lathe to be
tooled up, part program ready and ready to make parts prior to the arrival of an IEMCA service technician.
In case the above conditions are missing and a return trip is needed, lost on site time will be charged at $ 120/labor hour, $
80/travel hour + expenses.

Warranty & Phone Support
IEMCA bar feeders and gantry loaders are offered with 12 months parts and labor warranty. IEMCA will provide free phone
support as long as the equipment was originally purchased from our authorized sales channels. This will be confirmed by
comparing Company name with equipment serial number.
