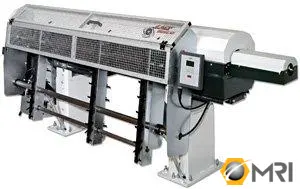

New LNS Quick Six S2 6' Bar Feed
* For Fixed or Sliding Headstock Lathes *
a 5% surcharge may apply from LNS to cover additional expenses due to logistics during COVID
Click the links below to view video demonstrations of this machine:
http://www.youtube.com/watch?v=5pngh8k0U7s
http://www.youtube.com/watch?v=AQuyUxbqcIM
Prices subject to change without notice
General Specifications per Manufacturer:
Diameter: 3/8"- 3-1/8"(8 - 80 mm)
Bar length: 18"- 6' (457.2 - 1905 mm)
Loading system: Chain loading rack
Loading capacity: 7 bar stocks
Loading: Front
Headstock type: Fixed
Z axis retraction: 19" (470 mm)
Total changeover: 4 min
Bar selection
Motor: Servo
Drive: Notched belt
Guiding: Guiding tube
Option
Lower horizontal rack magazine
to increase total loader capacity: 25" (635 mm)
Equipped With:
One 8 mm or 15 mm pusher
Chain Magazine holds 7 pieces of bar stock
One guide tube
19" Z Axis retraction
Custom Electrical Package with Plugs
Optional Accessories (prices subject to change without notice)
Installation (USA) $3,450.00
Installation (Canada & Mexico) $4,150.00
Lower Horizontal Rack: $3,000.00
Additional Guide Tubes: $ 535.00
Extension or reduction of front guide tube
(for short/long spindle machines) $1,500.00
Additional extended guide tubes
(one required for each stock/spindle liner size) $ 695.00
Tall Leg Risers for lathe centerline
47 1/4" - 55": $1,015.00
Rear Load Configuration $2,140.00
Dual Channel Safety Circuit Protection (DCS) $ 535.00
Oil Recuperator for Recessed Spindles $ 300.00
Quick Six requires one spindle liner tube for each bar stock diameter
Steel Spindle Liners
Up to 3-1/8" Drawtube I.D.(round): $ 530.00
Up to 3-1/8" Drawtube I.D.(Hex): $ 585.00
Surcharge for Hardened Liner: $ 350.00
Coolant Collector Extension: $ 700.00
Quick Change Adapter: $ 580.00
