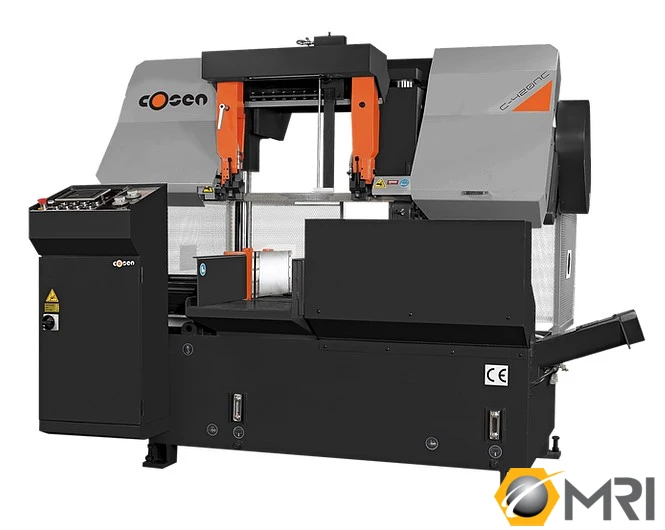

New Cosen C-420NC Fully Automatic Dual Column Band saw
ConditionNew
New
New Cosen C-420NC Fully Automatic Dual Column Band saw
Included Accessories:
CE Certified Upgrade with enhanced safety features
Blade “clip” device eases blade changing when necessary by holding the blade on the band
wheel during installation, making it very easy for one person to change the blade.
Adjustable fence to support bundled cut-off stock
Additional flushing hose for cleaning
Mitsubishi Touch Screen Control w/ Cosen V_Drive
Bi-metal saw blade
Tool Box with tools, leveling pads, and an additional wire brush
Operation & parts manual
Full stroke vises
Double retracting vises
Hydraulic powered chip auger
Blade vibration dampener
Saw frame height encoder
Optional Accessories
Variable Vise Pressure Regulator (Part# AHA-10400KIT) $ 1,395.00
Blade Deviation Detector (Reduces width capacity by 2") $4,795.00
Hydraulic Top Clamps for Machine & Index Vises (Part# AHN-2600) $ 3,995.00
Heavy-duty Roller Table 5’ long (Part# RT-5-19P) Capacity- 4200lbs $ 2,695.00
Heavy-duty Roller Table 10’ long (Part# RT-10-19P) Capacity - 7700lbs $ 4,095.00
6’ 6" Heavy-duty Table w/ Vertical Alignment Rollers (Part#05RC-4470-2M) Capacity- 5500lbs $ 3,395.00
Micro Droplet Applicator $ 3,295.00
Buck Boost Transformer for incoming power of 208V or below $ 2,495.00
Voltage Change to 460V 3PH $ 995.00
QR Code Reader $ 2,995.00
Maximum Cutting Capacity:
Round 16.5"
Square 16.5" x 16.5"
Rectangle (w x h) 16.5" x 16.5"
Bundle (w/ opt. Top clamp) Width: 7.5" - 14.2"
Height: 3.9" - 7.1"
Work Bed Height: 29.1"
Blade Speed Variable 50-328 FPM
Blade Size 15'7.8" x 1.5" x .050"
Blade Guides Carbide
Motor:
Saw Blade: 10HP
Hydraulic: 2HP
Coolant: 1/4 HP
Automatic Material Feed:
Job Storage: Up to 100 Jobs
Single Index Stroke: 0" - 19.8"
Multiple Stroke Indexing: 0" - 999"
Machine Dimensions: 101.5" x 97.8" x 71"
Machine Weight: 4,901 lbs
Power 230V, 3PH, 60 Hz
(460, 3Ph, 60 Hz Optional)
Optional Accessories:
Variable Vise Pressure Regulator (Part# AHA-10400KIT): $1,395.00
Blade Deviation Detector (Reduces width Capacity by 2"): $4,495.00
Hydraulic Top Clamps for Machine & Index Vises (Part# AHN-260001*T): $3,695.00
Heavy-duty Roller Table 5’ long (Part# RT-5-19P): $2,395.00
Heavy-duty Roller Table 10’ long (Part# RT-10-19P): $3,595.00
7’ Heavy-duty Table w/ Vertical Alignment Rollers (Part#05RC-4470-2M): $3,095.00
Micro Droplet Applicator: $2,995.00
Buck Boost Transformer for incoming power of 208V or below: $1,995.00
Voltage Change to 460V 3PH: $995.00
QR Code Reader: $2,995.00
