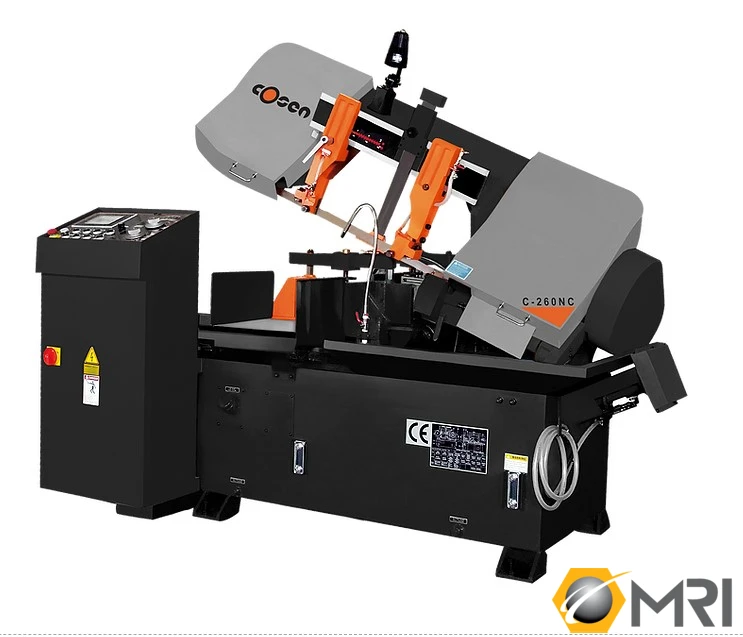

Cosen C-260NC Fully Fully Programmable Automatic Hydraulic Bandsaw
ConditionNew
New
Cosen C-260NC Fully Fully Programmable Automatic Hydraulic Bandsaw
Blade “clip” device eases blade changing when necessary by holding the blade on the band
wheel during installation, making it very easy for one person to change the blade.
Adjustable fence to support bundled cut-off stock
Additional flushing hose for cleaning
Built in work light
Bi-metal saw blade
Tool box with tools, leveling pads, and an additional wire brush
Operation & parts manual
Full stroke vises
Double retracting vises
Hydraulic powered chip auger
Heavy-duty 7' roller table w/ vertical alignment rollers
Machine Features:
Hydraulic cylinder supports the saw head with ball joint
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
5.7” HMI touchscreen
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Automatic hydraulic blade tensioning device
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Save-A-Blade feature
Precision feed pressure and feed rate dual valve system for optimal cutting performance
Computer controlled multiple indexing up to 999” max length
Controller SNC-100 System
Maximum Cutting Capacity:
Round 10.2"
Square 10.2 x 10.2"
Rectangle (w x h) 10.2" x 11.8"
Bundle (w/ opt. Top clamp) 6.1" - 7.9" W x 2-4.7"H
Blade Speed Variable 66-328 fpm
Blade Size 1-14" x 12" x .043"
3660mm x 34mm x 1.1mm
Motor 5hp
Power 230V / 3 / 60Hz (standard 440V opt)
Automatic Material Feed upto 99 Job Storage
Weight (approx) 3300 lbs
Shipping Dimensions 85" x 86" x 60"Floor Space (LxWxH)
Work Bed Height 28.37"
Full specification & options available
Blades are optional.... please ask about a try and buy blade program
Optional Accessories
Variable Vise Pressure Regulator: $1,395.00
Hydraulic Top Clamps : $3,295.00
Heavy-duty Roller Table 5' long: $2,695.00
Heavy-duty Roller Table 7' long w/vertical Rollers:$3,095.00
Heavy-duty Roller Table 10' long: $3,595.00
Micro Droplet Applicator (UNI-C): $2,995.00
Buck Boost Transformer for incoming power 208V or below: $1,695.00
Voltage change to 460V 3PH: $995.00
QR Code Reader: $2,995.00
1 Gallon Misting Oil: $99.00
5 Gallon Misting Oil: $429.00
