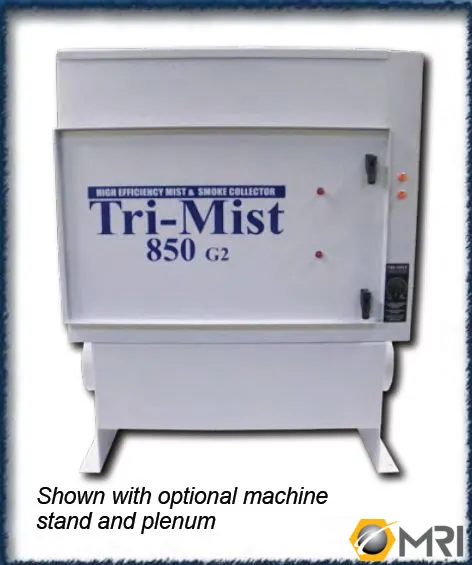

New Tri-Mist 850 High Efficiency Mist & Smoke Collector
Additional Features:
Double Pass ESP Technology
Coated cells
Motor and control prewired
Variable Speed Controller
Four year parts warranty
Optional Accessories
Machine Mount with Stands:............$362.11 EA
Plenum w/ (2) 6" Collar:....................$537.39 EA
6" Black Flex Duct: ............................$426.08 (8')
6" / 8" Hose Clamps:.........................$29.20 EA (Pack of 2)
1/2 NPT Elbow:..................................$12.90 EA
1/2 ID Tubing:....................................$32.56 (Pack of 12)
Delivery - 2-3 Weeks
General Specifications as per Brochure:
Dimensions: 26" x 13.75" x 21.5"
Inlet Opening: 16.70" x 9.10"
Cabinet: 16 ga Steel welded with chemical resistant powder paint
Weight: 100 lbs Installed;
125 lbs. Shipping
Efficiency: Up to 99% per ASHRAE 52.2
Filtration:
1st Stage: 4" mechanical impinger.
2nd Stage: ESP cell 53 sq. ft. of surface area
(Minimum voltage gradient is 20,000 volts per inch.)
3rd Stage: ESP cell 53 sq. ft. of surface area.
4th Stage: 1" thick post filter
5th Stage: Optional HEPAMAX filter rated at 99.97% DOP @ .3 micron.
Airflow: 50-850 CFM
ESP Power Supply: Solid state& self-regulating.
Electrical Rating: 115 V , 50-60 HZ, 4 amps.
Impeller: Vibration free, backward curve rated at 1050 cfm @ 0.0" w.g.
Sound Levels: 69 dBa
**Voltage must be specified when ordered**
Input voltage cannot be changed in the field.
Other Power Options Available:
Tri-Mist 850 G2 (208-230 V, 50-60 HZ, 2 amps.).....$5,065.00
Tri-Mist 850 G2 with Transformer (400-480V, 50-60 HZ, 1 amp)........$5,250.00
