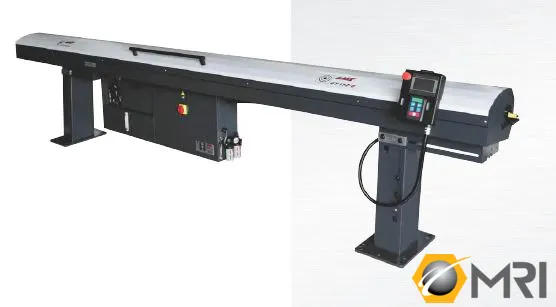

New LNS GT-112E Magazine Type Bar Feed

General Specifications As Per Brochure:

12' GT 112-E Base Unit: $27,930.00
.031" - .437" (.8mm - 11mm) Diameter and 0.500" Max. (12.7mm) w/ Bar Prep

Equipped With:
1 Set Dual Size Guiding Channels w/ Two Pushers
1 Remnant Retract Collect and Collet Adapters
1 Set Of Joint Pipe (Connecting Blue)
Custom Electrical Cable Package w/ Plugs

6' GT 112-E Base Unit: $25,630.00
.031" - .437" (.8mm - 11mm) Diameter and 0.500" Max. (12.7mm) w/ Bar Prep

Equipped With:
1 Set Dual Size Guiding Channels w/ Two Pushers
1 Remnant Retract Collect and Collet Adapters
1 Set Of Joint Pipe (Connecting Blue)
Custom Electrical Cable Package w/ Plugs

USA Installation: (Net) $3,450.00
Canada & Mexico Installation: (Net) $4,150.00

Dual Size Guiding Channel Set Selection Chart

Lathe Spindle Capacity: 1-4mm
Dual Size Guiding Channel Setup: 6/8
Bar Stock Diameter Range w/o Bar Prep: 0.8mm - 4mm

Lathe Spindle Capacity: =7mm
Dual Size Guiding Channel Setup: =6/11
Bar Stock Diameter Range w/o Bar Prep: 0.8mm - 7mm

Lathe Spindle Capacity: =10mm
Dual Size Guiding Channel Setup: =6/14 & 8/14
Bar Stock Diameter Range w/o Bar Prep: 0.8mm - 10mm & 2mm - 10mm

Lathe Spindle Capacity: =12mm
Dual Size Guiding Channel Setup: =6/14 & 8/14
Bar Stock Diameter Range w/o Bar Prep: 0.8mm - 11mm & 2mm - 11mm
Bar Stock Diameter Range w/ Bar Prep: 2mm - 12.7mm

Optional Accessories:

Additional Dual Size Guiding Channel Set, Including Two Pushers: $1,980.00
Remnant Retract Collet (One Required For Each Bar stock Size: $135.00 (EACH)
Additional Joint Pipe (One Required For Each Channel Size): $360.00
Dual Channel Safety Circuit Protection (DCS): $535.00
Bar Feeder 15" Z-Axis Retraction System w/ Safety Switch: $1,015.00
Bar Feed Two Position System w/ Safety Switch for Non Guide Bushing:$1,340.00
