New Edge Vortex Coolant Mist Filtration Systems
General Specifications from Manufacturer Brochure
Edge Technologies’ Vortex AF Series is an extremely effective water-soluble coolant
mist collector & filtration system. It is specifically designed for machine tools
performing wet machining operations.
The Vortex AF coolant mist collector is the perfect synthesis of advanced
centrifugal separation and HEPA air filtration, achieving high air purification
efficiency with minimum maintenance and low cost.
Effectively Removes
Water-soluble coolant mist
Fog
Aerosols
Smoke
Why the Vortex Coolant Mist Collector?
Highly effective 3-stage centrifugal-impaction filtration
99.97% filtering efficiency as measured by MPPS method using a final stage
E12 HEPA filter
Minimal maintenance-filter changing
Compact mist collector design
Recycles water-soluble coolant mist
Low power consumption
Features: Vortex AF Series
Easy access for 1st-Stage filter removal
Choice of mounts: machine, stand, or ceiling
220v 3-phase power
Airflow capacities from 475 to 1700 CFM
Designed for working envelopes from <215 to 1130 cubic feet
Choice of independent or machine power supply
Prices subject to change without notice
AF-10P $ 3450
Suitable cabin size: up to 215 CF. Power supply 220v 60Hz.
Motor .27 HP. 6" inlet port. Air flow 475 CFM
AF-20P $ 3975
Suitable cabin size: 215 to 425 CF. Power supply 220v 60Hz.
Motor .53 HP. 6" inlet port. Air flow 725 CFM

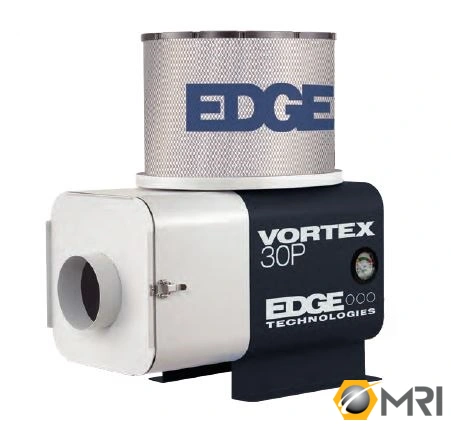

AF-30P $ 4500
Suitable cabin size: 425 to 850 CF. Power supply 220v 60Hz.
Motor 1.00 HP. 8" inlet port. Air flow 1150 CFM
AF-40PL $ 5600
Suitable cabin size: 850 to 1130 CF. Power supply 220v 60Hz.
Motor 1.54 HP. 10" inlet port. Air flow 1700 CFM
Optional Accessories and replacement components
Machine Independent Stand $ 495
Synthetic mesh overlay $ 15
HEPA filter : (AF-10P and AF-20P) $ 759
First-stage filter: (AF-10P and AF-20P) $ 352
HEPA filter: (AF-30P and AF-40PL) $ 849
First-stage filter: (AF-30P and AF-40PL) $ 520
Electrical kit $ Contact us
includes lathe side motor starter and contactor
See attached PDF for More Specifications and Dimensions
