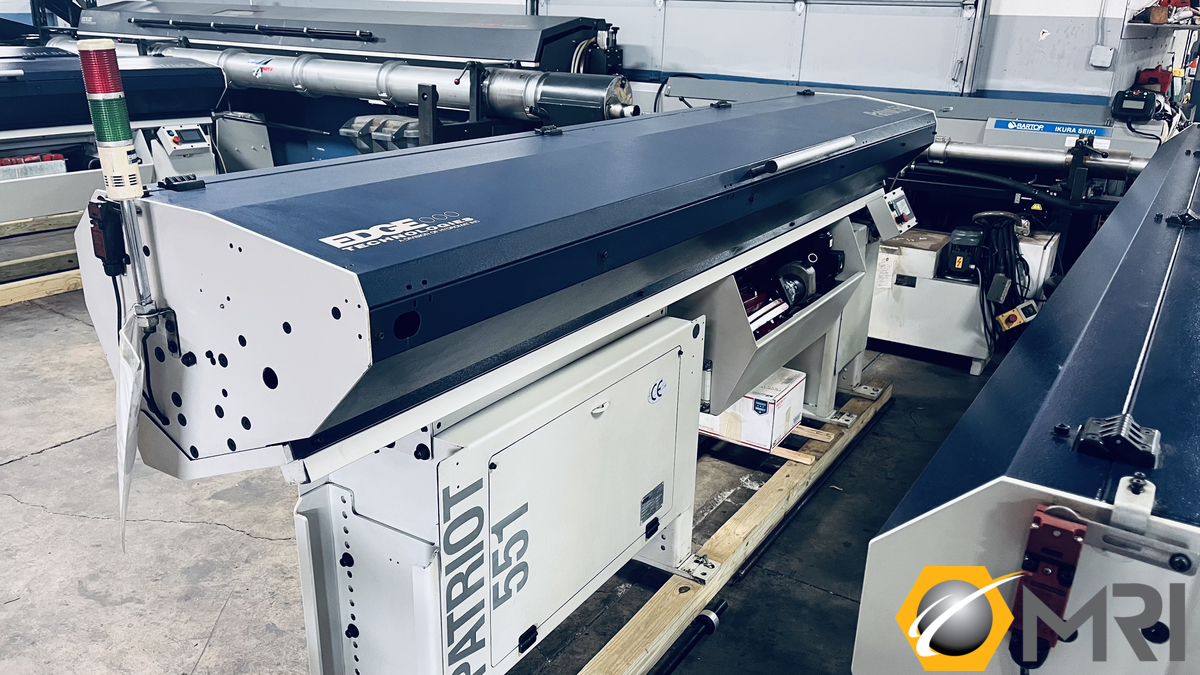

Edge Technologies Patriot 551 Automatic Bar Loader, Full 6' bar cap, New 2011

To the best of our knowledge all details listed below are deemed correct.
It is the buyer's responsibility to confirmed prior to purchase.

General Specifications per Manufacturer

Bar Capacity:
No Prep: 5mm to 44.5mm (.196" to 1.75")
With Prep: 5mm to 51 mm (.196" to 2.000")
Maximum Bar Length: 8'
Minimum Bar Length: 39.4"
Maximum Remnant Length: 16"
Magazine Rack Capacity: 12"
Bar Loading Cycle: 30 seconds for 12' bar
Material Straightness Specifications: .007"TIR/ft of material
(V Blocks, 3 points equidistant)
Feed Force (pusher torque): max 450N, adjustable
Foward Feed Rate: 750 inches/min max, adjustable
Return Feed Rate: 1000 inches/min max, adjustable
Power Consumption: 1.5kW
Operating Voltage: 230V/60 Hz - 3 phase
Control Voltage: 24V DC
Oil Capacity: 57 liters (15 gallons)
Oil Viscosity: ISO 150cST
Compressed Air Supply: 6 bar (90 psi)
Compressed Air Consumption: approx. 8 liters/loading cycle

Barfeed: 128" x 28" x 49" 2,100 lbs
