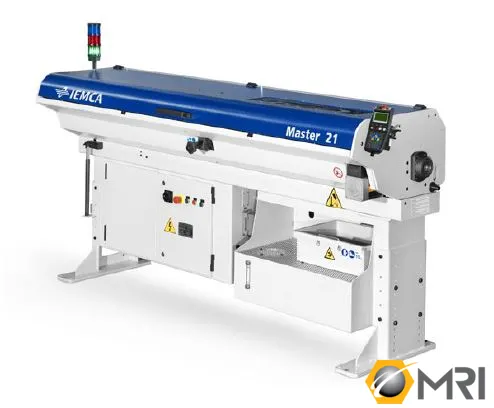

Iemca Master 21 Magazine Bar Loader
The Master 21 is a premium short bar feeder for 6 feet bars, perfect for those
who are looking for something high performing: very rigid, simple to use, with
large magazine capacity, elevated bar rotation speed, reduced retooling times.
Technical Specs
ROUND BARS8 - 80 mm (5/16'' - 3'' 1/8)
HEXAGONAL BARS8 - 65 mm (5/16'' - 2" 9/16)
SQUARE BARS8 - 50 mm (5/16'' - 2")
BAR LENGTH800 - 2,300 mm (2'7" - 7'7")
REMNANT LENGTH"? < 65 mm: 110 - 400 mm (4.33'' - 15.75'')? > 65 mm: 110 - 250
mm (4.33'' - 9.84'')"
BAR WEIGHTMax 120 kg (265 lbs)
BAR CHANGEOVER TIME45 sec (for bar length of 3,200 mm)
FEED RATE500 mm/sec (1,180 in/min)
RETURN SPEED1,000 mm/sec (2,360 in/min)
BAR FEEDER WEIGHT6' version: 1,000 kg (2,210 lbs)
COMPRESSED AIR6 - 8 bar (87 - 116 psi)
INSTALLED POWER3.75 kW
MP MAGAZINE AVAILABLESingle Rack 320 mm (12.6'')
UP MAGAZINE AVAILABLENO
OAB/F MAGAZINE AVAILABLE"NO20 feet version: Bundle 2.5 tons (5,000 lbs)"
Prices (subject to change without notice)
Bar Feeder
Master 21 6 feet $39,990
Master 880 Verso 20 feet with Bundle Magazine (also available) N.A.
All bar feeders include: standard electrical and mechanical interface to the
lathe, Single Rack magazine, remnant retraction system, front bushing device
and 1 guide channel set (1 Guide Channel, 1 Bar Pusher, 1 Rotating Tip, 1
Front Nose, 1 Collet and 1 Split Bushing)
Accessories
Category III interface (Dual Channel Safety Circuit Protection) $1,490
Special adaptation kit (Required for some lathes) $1,990
Options
Touch screen 7" panel $490
Additional guide channel set $2,990
Spindle liner $450
Additional collet (standard OD threaded collet) (20mm < D < 52mm) $120
Additional collet (standard OD threaded collet) (52mm < D < 80mm) $190
Additional split bushing $150
Kit for additional status lights $80
Kit for Industry 4.0 $2,990
Installation
Installation in USA, Canada and Mexico $3,300
Installation price includes labor, travel expenses, on site operator training
at the time of installation, 12 month parts and labor warranty
