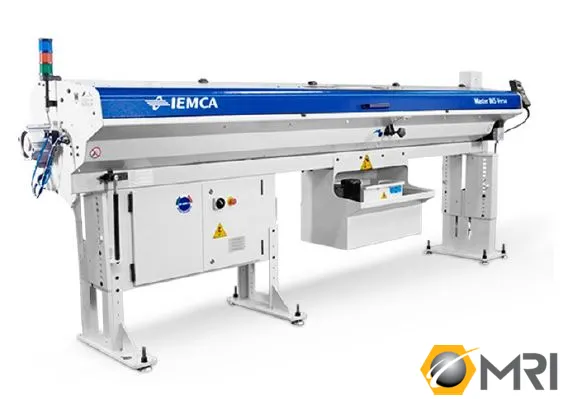

New Iemca Master 865 Verso Single Rack Magazine Loader

The Master 865 Verso is a premium bar feeder, for those who are looking for
high performance: elevated rigidity, simplicity of use, fast bar rotation,
reduced time for retooling.

General Specifications:
Bar Diameter Capacity: .31" - 2.5"
Bar Length: 31" - 169"
Bar Weight: 264 lbs

Technical Specs
Round Bars 8 - 65 mm (5/16 - 2 5/8")
Hexagonal Bars 8 - 55 mm (5/16 - 2 3/16")
Square Bars 8 - 45 mm (5/16 - 1 3/4")
Bar Length 1,000 - 4,300 mm (3'3" - 14'1")
Remnant Length 110 - 400 mm (4.33 - 15.75")
Bar Weight Max 120 kg (265 lbs)
Bar Changeover Time 45 sec (for bar length of 3,200 mm)
Feed Rate 500 mm/sec (1,180 in/min)
Return Speed 1,000 mm/sec (2,360 in/min)
Bar Feed Weight 12' version: 1,440 kg (3,180 lbs)
Compressed Air 6 - 8 bar (87 - 116 psi)
Installed Power 3.75 kW
MP Magazine Available Single Rack 320 mm (12.6")
UP Magazine Available NO
20 feet version: UP (Lower Single Rack)
600 mm (23.62")
900 mm (35.43) or
1,200 mm (47.24") opt avail
OAB/F Magazine Available NO

Prices (subject to change without notice)

Bar Feeder

Master 865 Verso MP 12 feet $48,990
Master 865 Verso MP 14 feet $54,990
Master 865 HD 20 feet with UP (Lower Single Rack) Magazine N.A.

All bar feeders include: standard electrical and mechanical interface to the
lathe, Single Rack magazine, remnant retraction system, front bushing device
and 1 guide channel set (1 Guide Channel, 1 Bar Pusher, 1 Rotating Tip, 1
Front Nose, 1 Collet and 1 Split Bushing)

Accessories

Category III interface (Dual Channel Safety Circuit Protection) $1,490
Special adaptation kit (Required for some lathes) $1,990

Options

Touch screen 7" panel $490
Additional guide channel set $3,490
Spindle liner $450
Additional collet (standard OD threaded collet) (20mm < D < 52mm) $120
Additional collet (standard OD threaded collet) (52mm < D < 80mm) $190
Additional split bushing $150
Kit for additional status lights $80
Kit for Industry 4.0 $2,990

Installation

Installation in USA, Canada and Mexico $3,300

Installation price includes labor, travel expenses, on site operator training
at the time of installation, 12 month parts and labor warranty
