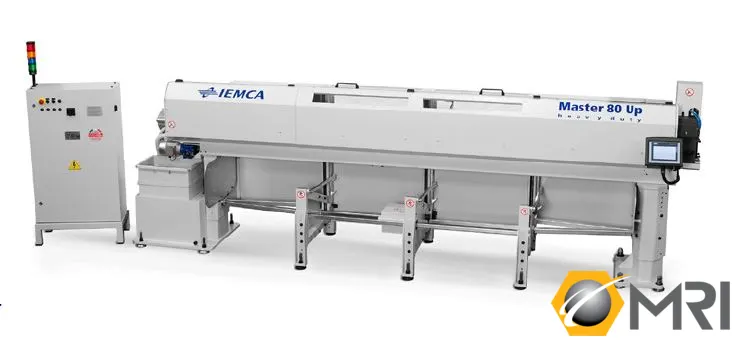

Iemca Master Heavy Duty (UP) - NEW

The Master 80 HD is a premium bar feeder, for those who are looking for
something high performing: very rigid thanks to the new Heavy Duty (HD)
version, certified for ergonomics for loading heavy bars by the UP magazine,
possibility to have the bundle magazine to increase its capacity, ease of use,
elevated speed of the bar rotation, reduced time for retooling, and maximum
flexibility thanks to the HF (Hyper Flexible) technology.

Technical Specs

ROUND BARS 8 - 80 mm (5/16 - 3 1/8")
HEXAGONAL BARS 8 - 65 mm (5/16 - 2 9/16")
SQUARE BARS 8 - 50 mm (5/16 - 2")
BAR LENGTH 1,700 - 4,300 mm (5'7" - 14'1")
REMNANT LENGTH < 65 mm: 110 - 400 mm
(4.33 - 15.75")
> 65 mm: 110 - 250 mm
(4.33" -9.84")
BAR WEIGHT Max 180 kg (397 lbs)
BAR CHANGEOVER TIME 32 sec (for bar length of 3,200 mm)
FEED RATE 500 mm/sec (1,180 in/min)
RETURN SPEED 1,000 mm/sec (2,360 in/min)
BAR FEEDER WEIGHT "UP (Lower Single Rack) version 1,600 kg (3,530 lbs) Bundle
version 2,400 kg (5,300 lbs)"
COMPRESSED AIR 6 bar (87 psi)
INSTALLED POWER 4 kW
MP MAGAZINE AVAILABLE See Master 80 HF
UP MAGAZINE AVAILABLE "UP (Lower Single Rack) 600 mm (23.62'') (900 mm
(35.43'') option available) (1,200 mm (47.24'') option available)"
OAB/F MAGAZINE AVAILABLE Bundle 2.5 tons (5,000 lbs)

Bar Feeder

List Price (subject to change without notice)

Master 80 HF HD 12 feet with UP (Lower Single Rack) Magazine $69,990
Master 80 HF HD 14 feet with UP (Lower Single Rack) Magazine $72,990
Master 80 HF HD 12 feet with Bundle Magazine $84,990

All bar feeders include: standard electrical and mechanical interface to the
lathe, remnant retraction system, front bushing device and 1 guide channel set
(1 Guide Channel, 1 Bar Pusher, 1 Rotating Tip, 1 Front Nose, 1 Collet and 1
Split Bushing)

Accessories

Category III interface (Dual Channel Safety Circuit Protection) $1,490
Special adaptation kit (Required for some lathes) $1,990

Options

Touch screen 7" panel $490
Additional guide channel set (not needed for bars between 15&80 mm) $3,490
Spindle liner (not needed for bars between 15 and 80 mm) $450
Additional collet (standard OD threaded collet) (20mm < D < 52mm) $120
Additional collet (standard OD threaded collet) (52mm < D < 80mm) $190
Additional split bushing $150
Kit for additional status lights $80
Magazine extension (only for UP Magazine) $990
Trolley for bars (only for UP Magazine) $1,990
Short bar kit (only for Bundle Magazine) $1,990
Kit for Industry 4.0 $2,990

Installation
Installation in USA, Canada and Mexico $3,900
Installation price includes labor, travel expenses, on site operator training
at the time of installation, 12 month parts and labor warranty
