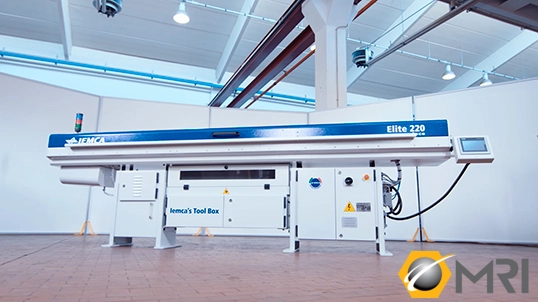

NEW Iemca Elite 220 Superfast Magazine Bar Loader
* for Sliding Headstock *
General Specifications per Brochure:
Bar Size Capacity: 2mm (.08") - 20mm (.787")
Bar Length Capacity: 12'
Maximum Bar Length: 12' 2"
Minimum Bar Length: 63" (15.75" available option)
Magazine Capacity: 40 bars up to .25" diameter,
16 bars up to .787" diameter.
Maximum Remnant Length: 11.02"
Operating Voltage: 230V AC 3 Phase (400V available)
Control Voltage: 24 Volts DC
Total Power Required: 2.5 kVA/1.8 kW
Compressed Air Required: 90 psi, 10 cfm
Guide Channel Oil: ISO FD10, quantity 15 gal. (not incl.)
Feeding Speed: 39"/sec (Adjustable)
Facing Accuracy: +/- .008"
Bar Change Time: 23 seconds for 12' bar
Bar Straightness Required: .007"/foot
Bar Feeder Shipping Weight: 1570 lbs.
Color: RAL 5002 Blue, RAL 7035 Light Gray
Prices: (Subject to change without notice)
Bar Feeder
Elite 220 Superfast 6 feet $33,990
Elite 220 Superfast 12 feet $35,990
All bar feeders include: standard electrical and mechanical interface to the
lathe, walking beam and Single Rack magazine, synchronization device, remnant
retraction system, front bushing device and 1 guide channel set (1 Guide
Channel, 1 Bar Pusher, 1 Rotating Tip, 1 Telescopic Nose and 1 Collet)
Accessories
Anti Vibration Device $1,990
Axial shifting device (Z) (6 feet) $1,490
Axial shifting device (Z) (12 feet) $1,990
Category III interface (Dual Channel Safety Circuit Protection) $1,490
Special adaptation kit (Required for some lathes) $1,990
Options
Touch screen 7" panel $490
Additional guide channel set $2,490
Spindle liner $350
Additional collets $80
Kit for additional status lights $80
Tool box (only on 12+ feet) 990
Wet upgrade for laser swiss application 5000
Kit for low stock signaling light $790
Kit for Industry 4.0 $2,990
Installation
Installation in USA, Canada and Mexico $3,100
Installation price includes labor, travel expenses, on site operator training
at the time of installation, 12 month parts and labor warranty
