DMG MORI Sauer Ultrasonic 20 Linear Vertical Machining Center, 2008 |SB
ConditionUsed
1 available

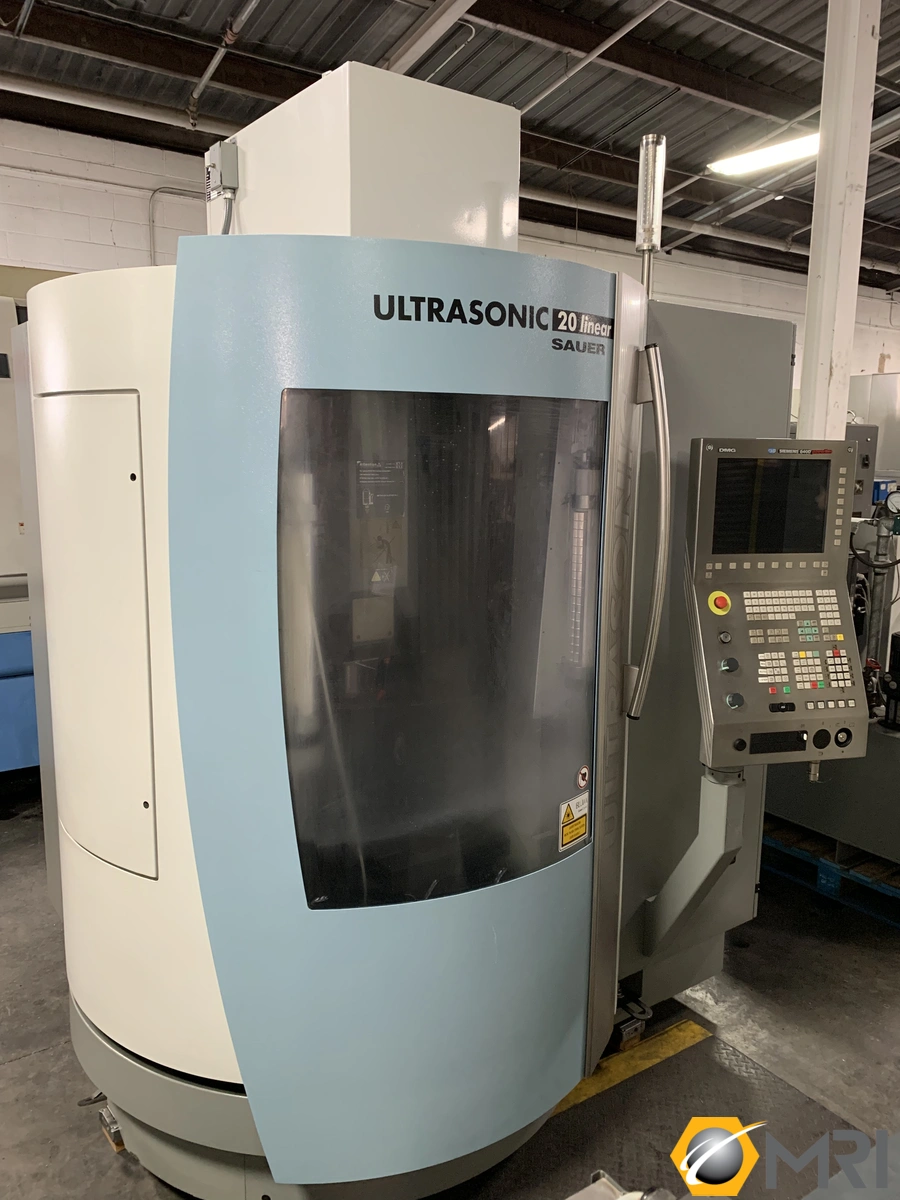

DMG Sauer Ultrasonic 20 Linear Vertical Machining Center, new 2008
Mill your HARD materials faster with Ultrasonic Milling
All items are estimates & details are the buyers responsibility
Siemens 840D Powerline CNC Control
US20 Ultrasonic 3 axis Linear
Siemens 840D Powerline Control
21 Post ATC
42,000 RPM HSK32A spindle
High pressure Through spindle coolant
High Pressure pump with filtration
Spindle and linear drive cooling unit
Renishaw OMP400 Spindle Probe
Blum tool setting laser
10 Ultrasonic HSK32A tool holders (approx)
10 Standard HSK32A high speed collet chucks (approx) see photos
Mist Collector
Electronics cabinet chiller
On Hours: 36061
Spindle Hours: 19703
Work Area
Max. X travels 200 mm
Max. Y travels 220 mm
Max. Z travels 280 mm
Table dimensions
Max. table load 15 kg
Table diameter 250 mm
Workpiece dimensions
Max. workpiece height 180 mm
Spindle
Standard speed 42,000 rpm optional 60,000 rpm
Drive power rating (100% DC) 15 kW (AC)
Torque (100% DC) 6 Nm
ULTRASONIC Frequency 15-55 kHz
Amplitude max. 10 µm
Tool magazine Capacity (Standard) 24 (40 or 60 ATC Optional)
Rapid traverse
Max. X axis 40 m/min
Max. Y axis 40 m/min
Max. Z axis 40 m/min
Original list price: $330,000
Dimensions:
Machine: 80" x 65" x 93" 8,250 lbs
Coolant Pan: 60" x 23" x 11" 350 lbs
Pallet w/HPC, Spindle Chiller & Boxes w/Hoses & Filters: 40" x 48" x 62" 790 lbs
*Software Upgrade - 2017
