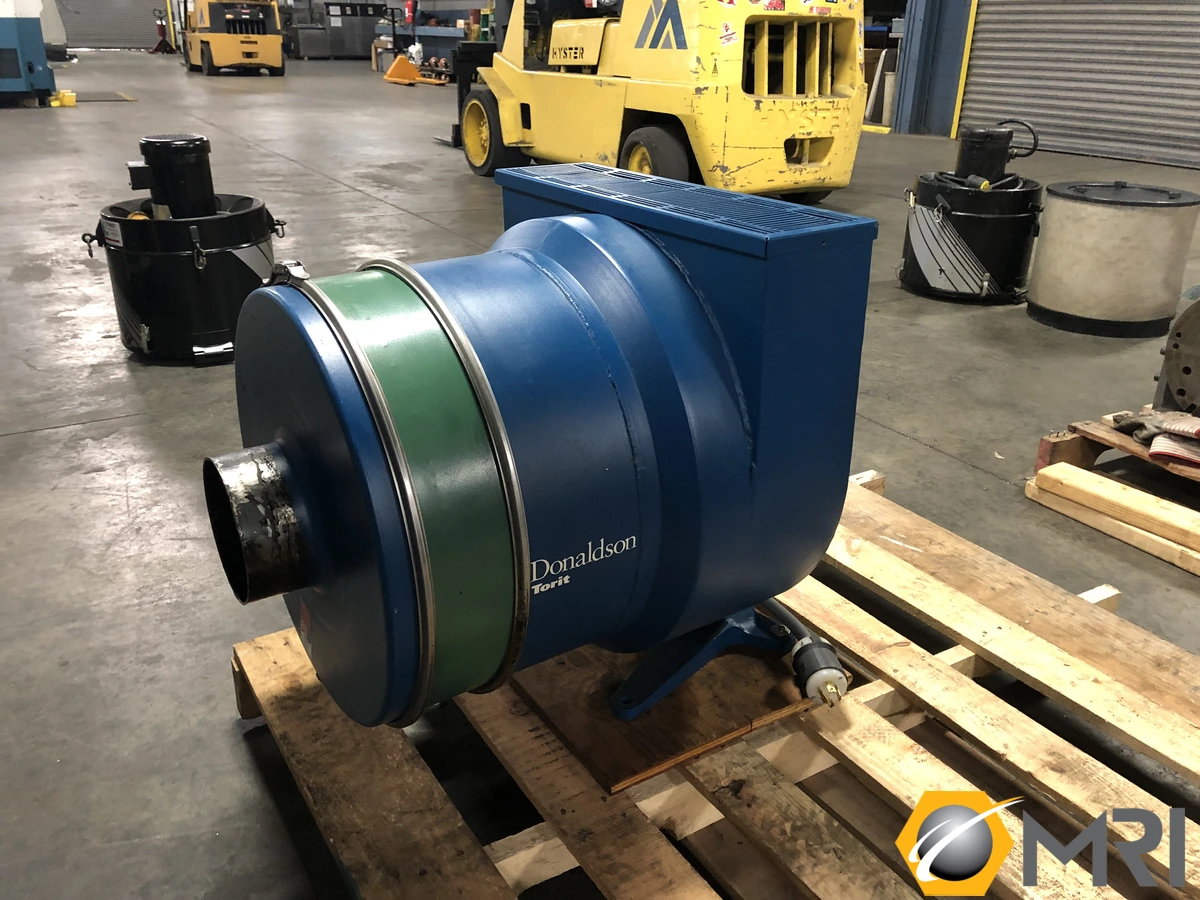

Donaldson EA-905 Centrifugal Mist Collector

All specification and details are subject to change without notification.
Information is from the OEM Data Sheet and all details should be check/confirmed prior to purchae.

Model EA-905
This unit can process just about any mist
-- (oil-based, synthetic, semi synthetic, and water-soluble coolants)

Nominal Airflow: 1000 cfm@1TSP
Intake: 5.9”
Airflow: Motor: 3HP
Sound: 76 dB
Dimensions: 20” x 23.2” x 20”D
Shipping Weight: 190#

Compact, direct machine-mountable mist collectors
designed to collect, filter, and reclaim mist generated
from machines using oil-based, synthetic, semisynthetic,
or water-soluble coolants.
• Efficient, compact design handles mist and smoke
applications from 100 - 1000 cfm (170 - 1699 m3/h)
• Three stages of filtration for high filtration efficiency
and optimum filter life
• Available with high performance in-cover or inline
prefilters for removal of swarf and large chips
and in-cover impingers for applications with heavy
concentrations of fine mist
• High collection efficiency of 98% on 1.0 μm
increasing to 99.97% at 0.3 μm with optional fourth
stage HEPA filter
• Direct-mount capability minimizes ductwork
• Recirculation of clean air eliminates the need for
costly make-up air
• Provides a cleaner work environment for
maximum productivity
• Helps support OSHA Clean Air Standards
