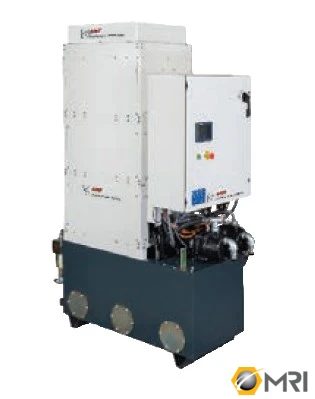

NEW ChipBLASTER F2-60 High-Pressure Coolant System

General Specifications As Per Brochure

F-Series High Pressure Coolant Systems
Fixed rate, modular, fundamental with available option

Filtration: Dual Bag
Flow: 16 GPM
Pressure: 1,000 PSI
Outlets: 2
Tank: 100 Gal

The Chipblaster F2-60 operates as two completely independent 30 liter (8 gpm) modules for
dual turrets or as a single 60 liter (16 gpm) fixed volume unit. This unit is fed by a transfer
pump that draws from the machine tool sump, through the filter vessel to the integral 380 liter
(100 gal) tank. When the machine tool calls for coolant, the positive displacement pump(s)
draws the coolant from the Chipblaster tank. The coolant then flows at high pressure through
a series of distribution and safety valves and on to the machine tool. This model is ideal for
machine-tools up to 30 kw (40 hp), dual turret lathes and 50 taper mills.
This user-friendly interface makes operating and managing the Chipblaster F2-60 system faster
and easier. The HMI is pre-programmed for multiple languages, provides easy-to-read, plain
text alarm screens, records critical alarm history data, allows the operator to view PLC I/Os in
real time, and much more.
See brochure for more details and options.

Installation by LNS Service Technician

Diaphragm Pump Upgrade* $2,310.00
Cyclone Filtration Upgrade $1,925.00
Wash Wand $2,800.00
Pressure or Flow Switch $3,300.00
Oil Skimmer $815.00
Mounted Chiller 34k BTU See Options
Mounted Mist Collector See MB Mist Collectors

*Diaphragm pump is recommended for abrasive materials like cast-iron and cast-aluminum
