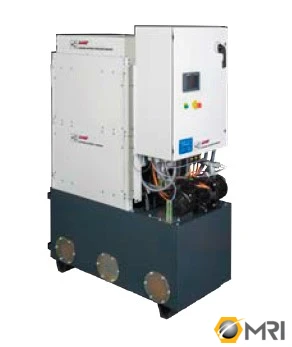

New ChipBLASTER V2-80 (was GV2-80) High-Pressure Coolant System
ConditionNew
New
New ChipBLASTER V2-80 (was GV2-80) High-Pressure Coolant System
a 5% surcharge may apply from LNS to cover additional expenses due to logistics during COVID
General Specifications As Per Brochure
V-Series High Pressure Coolant Systems
Variable volume, variable pressure, modular, premium with available options
Pressure: 1000 PSI
Coolant Volume: Automatically Variable
Flow: 2 x 10 GPM
Tank: 100 Gallon
Filtration: Dual Parallel Bags
Outlets: 2
The Chipblaster V2-80 can operate as two completely independent 40 liter (10 gpm) modules
or combine to provide high pressure and very high volumes 80 liters at any time during the
same program.
This is the “gold standard” for high pressure coolant systems. It automatically pumps just
enough volume to maintain full pressure Other systems pump a fixed rate that is always too
much or too little causing foam, heat, and short filter life. Ideal for machine tools up to 40kw
(50hp), dual turret lathes and 50 taper mills.
See brochures for more details and options.
Diaphragm Pump Upgrade* $2,310.00
Cyclone Filtration Upgrade $3,850.00
Wash Wand $2,800.00
Pressure or Flow Switch $3,300.00
Oil Skimmer $815.00
Mounted Chiller 34k BTU See Options
Mounted Mist Collector See MB Mist Collectors
*Diaphragm pump is recommended for abrasive materials like cast-iron and cast-aluminum
Installation by LNS Service Technician
