New ChipBLASTER V-60 (was EV-60) High-Pressure Coolant System
ConditionNew
New

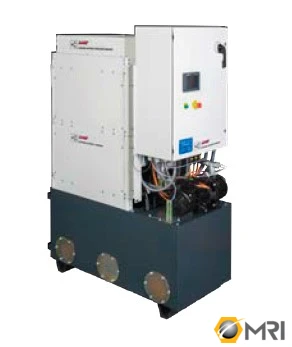

New ChipBLASTER V-60 (was EV-60) High-Pressure Coolant System
a 5% surcharge may apply from LNS to cover additional expenses due to logistics during COVID
General Specifications As Per Brochure
V-Series High Pressure Coolant Systems
Variable volume, variable pressure, modular, premium with available options
Pressure: 1000 PSI
Coolant Volume: Automatically Variable
3 - 16 GPM
Tank: 126 Gallon
Filtration: Single bag
Outlets: 1
The Chipblaster V-60 is fed by a transfer pump that draws from the machine tool sump, through
the filter vessel to the integral 480 liter (126 gal) tank. When the machine tool calls for
coolant, the filter pump(s) draw the coolant from the Chipblaster tank and pumps it to the inlet
of the positive displacement pump. The coolant then flows at high pressure through a series of
distribution and safety valves and on to the machine tool. Ideal for machine tools up to 30kw
(40hp), dual turret lathes and 50 taper mills.
This user-friendly interface makes operating and managing the Chipblaster V-60 system faster
and easier. The HMI is pre-programmed for multiple languages, provides easy-to-read, plain
text alarm screens, records critical alarm history data, allows the operator to view PLC I/Os
in real time, and much more.
See Brochure for more details and options
Diaphragm Pump Upgrade* N/A
Cyclone Filtration Upgrade $1,950.00
Wash Wand $2,800.00
Pressure or Flow Switch $1,650.00
Oil Skimmer $815.00
Mounted Chiller 34k BTU See Options
Mounted Mist Collector See MB Mist Collectors
Installation by LNS Service Technician
