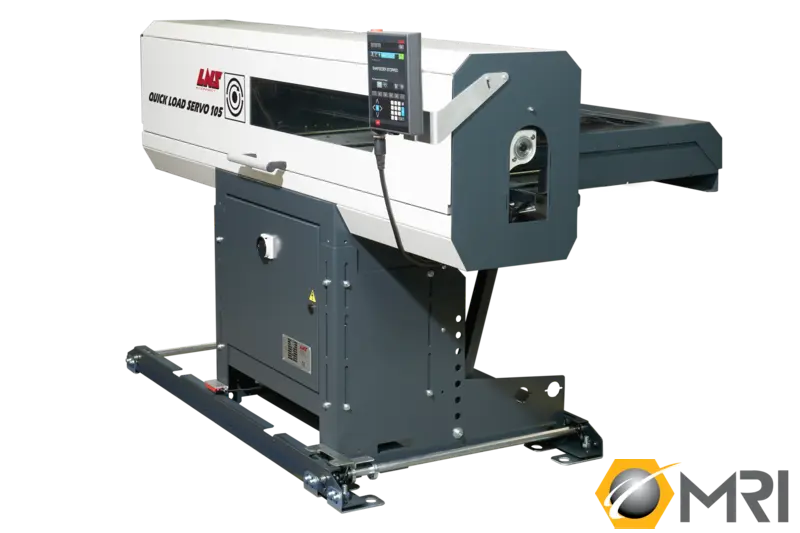

New LNS Quick Load Servo 105 Bar Loader

Specifications
Diameter Quick Load Servo 105: 1/4" to 4-1/8" (ø 6 - 105 mm)
Quick Load Servo 105-L: 3/8" to 4-1/8" (ø 9.5 - 105 mm)
Bar Length 11" to 63" (not to exceed overall length of spindle) / 300 mm – 1600 mm
Loading Capacity 26" / 650 mm
Headstock Type Fixed
Changeover 15 seconds or less (partial), 1 minute or less (complete)
X or Z-axis retraction 23" / 600 mm
2 Magazine Systems Heavy (standard), LIFT (optional)
Two Models Available Quick Load Servo 105: 1680 mm pusher,
Quick Load Servo 105-L: 2010 mm pusher
