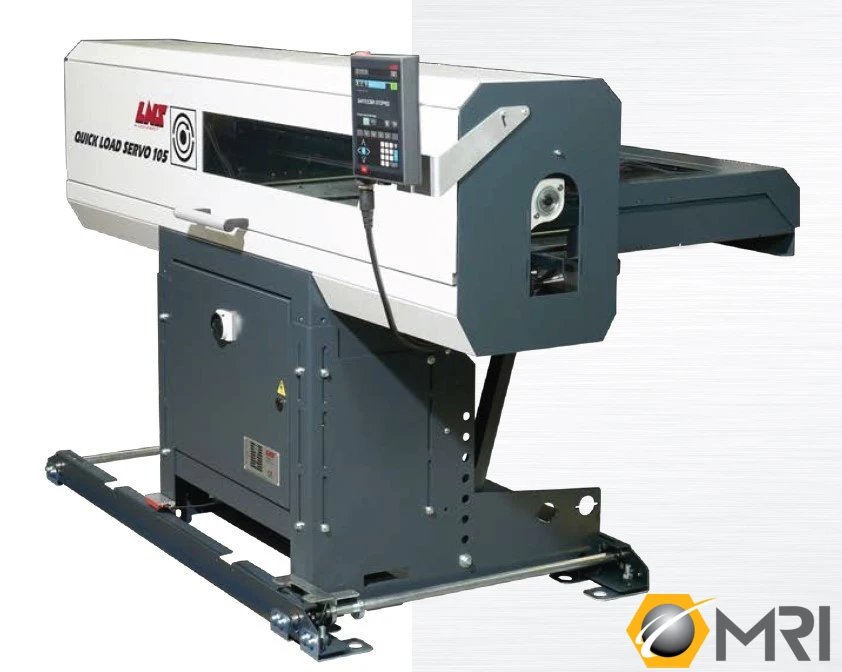

New LNS Quick Load Servo 105 Magazine Bar Loader

Technical Specifications:

Bar Diameter Capacity: 1/4" - 4-1/8"
Changeover Time: 15 seconds within pusher diameter range - no
mechanical changes required, 1 minute complete
changeover Maximum Bar Length: 63" - not to exceed
overall length of spindle
Magazine capacity: 26”
Minimum Bar Length: 11" (optional down to 4”)
Shipping Weight: 1,150 lbs.
Income Voltage: 200 to 460 volts, single phase, 1
Amp max Control Voltage: Integrated 24 VDC power supply, 1 Amp max

Bar straightness: For optimum performance recommended bar straightness is .5 mm (.020”) per meter (3.15’), per side, nonaccumulative.

Price and specifications are subject to change without prior notice.

Included with new bar loader purchase:

Base unit for 1/4” through 4-1/8” diameter x 11” through 63” length bar capacity including:
• 3 Pushers with Bushings
• 6 mm diameter pusher for 1/4" through 1/2" diameter bar stock
• 12 mm diameter pusher for 9/16” through 1-1/4” diameter bar stock
• 20 mm diameter pusher for 1-5/16” through 4-1/8” diameter bar stock
• 23” X or Z axis retraction system
• Custom Electrical Cable Package with Plugs.

Optional Accessories

Adapter kit for square bar stock $390.00
V-Channel extension with cover, 12” long $640.00
Option to load special shapes
(Please contact LNS for review of material) Consult Factory
Pusher disk for tubing $160.00
Tall Stands for lathes w/51” to 63” centerline height
(1300-1600 mm) $1,340.00
Extended retraction option 47” (1200mm) $1,380.00
One shot shaft loading option $800.00
Short parts kit to load 4” (100 mm) through 11” (280 mm)
round or hex bar stock $1,250.00
Option LIFT bar magazine - 26” linear capacity Consult Factory
Option SLIM for machines with mechanical interference
from tool changers, etc. $3,800.00
e-Connect interface capability Consult Factory
Dual Channel Safety Circuit Protection (DCS) $535.00

STEEL SPINDLE LINERS – Quick Load Servo 105 requires one spindle liner for each bar stock diameter
Steel price also includes extended style and 2-piece style liners

SPINDLE LINER FOR ROUND FOR HEX QUICK CHANGE
STOCK AND SQUARE ADAPTER
Up to 4-1/8” Drawtube I.D. $665.00 $725.00 $690.00
Surcharge for Hardened Liner $350.00
Confirmation Ring $270.00
Coolant Collector Extension $700.00

POLYURETHANE SPINDLE LINER – Quick Load Servo 105 requires one spindle liner for
each bar stock diameter
Up to 4-1/8" Drawtube I.D. Round and Hex Liner $665.00
Up to 4-1/8" Drawtube I.D. Square Liner $780.00
Up to 4-1/8" Drawtube I.D. Custom Shape Liner $1,065.00

Installation
USA Installation (Net) $2,950.00
Canada & Mexico Installation (Net) $3,450.00
