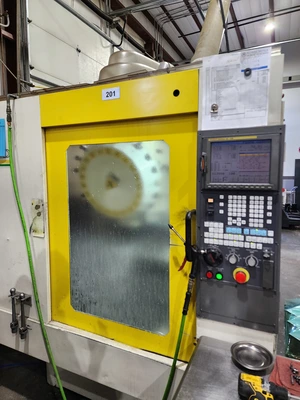

Fanuc Robodrill a-T21iDL Drilling & Tapping Center, New in 2003

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Table Size: 25.59" x 15.74"
Table Capacity: 550 lbs
X-Axis Travel: 19.68"
Y-Axis Travel: 15.75"
Z-Axis Travel: 12.99"
Rapid Traverse Rate (X/Y/Z): 2125 IPM
Spindle Taper: BT30
Spindle Speed: 20,000 RPM
Main Motor: 7.5 HP
Tool Changer Capacity: 21

Machine Dimensions: 64" x 80" x 106"
Machine Weight: 4400 lb
