CITIZEN A20VII CNC SWISS LATHE New: 2012 | AB 604000
ConditionUsed
1 available

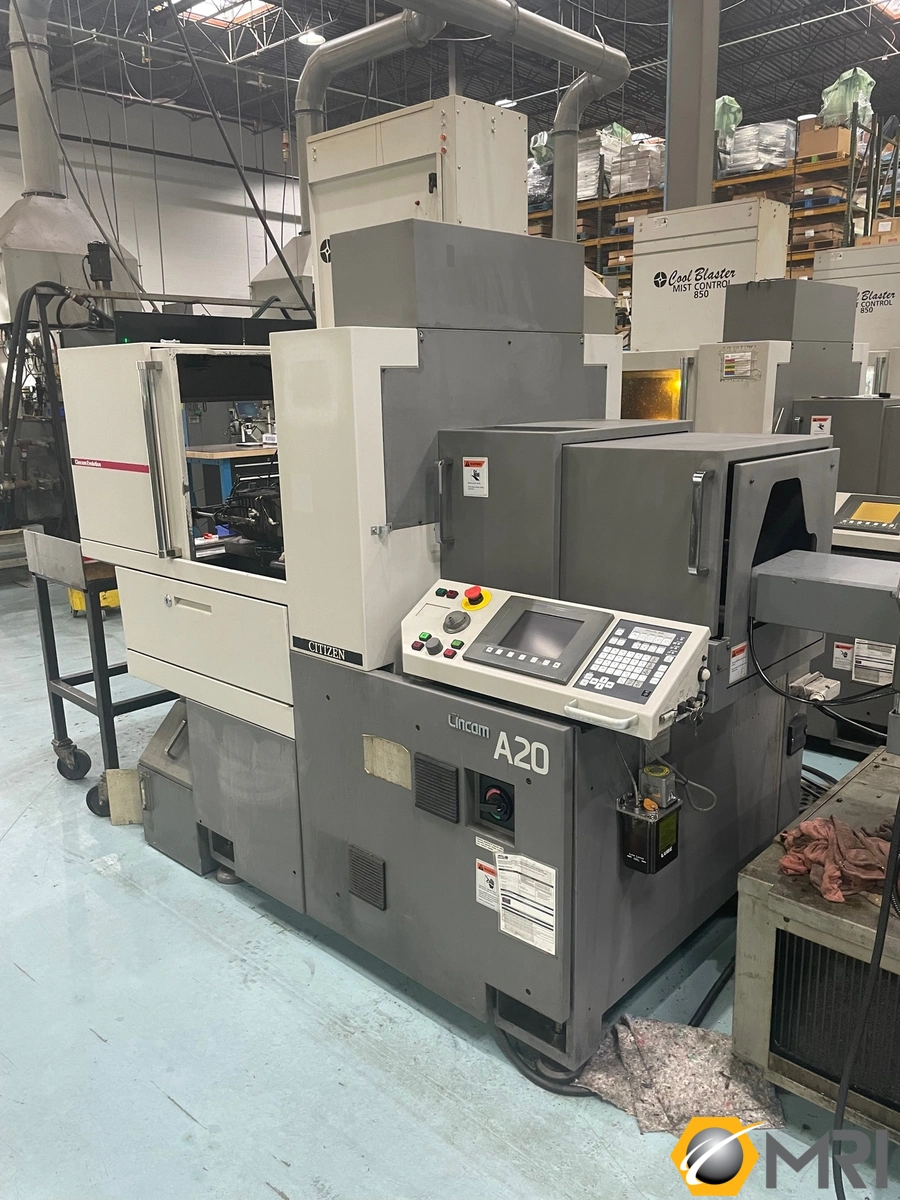

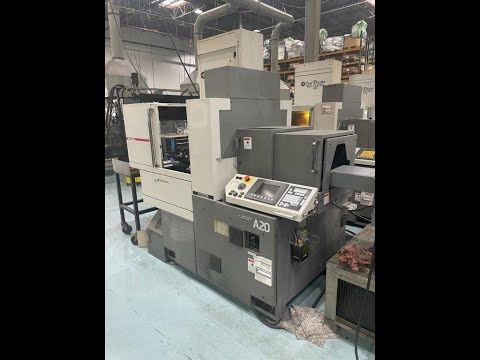

Used 2012 Citizen A20VII CNC Swiss Lathe for sale. 0.75" (20mm) Capacity with 6 Turning Tools, 4 Rotary Tools, Full C-Axis, Sub-Spindle & Independent Back Working. Fanuc 32i CNC Control, Mist Collector, High Pressure Coolant System, Magazine Bar Feed.
Inspect this machine always an option for our customers. This machine has been fully serviced
Trust Automatics & Machinery for all your CNC Swiss, Turning, Barfeeds, Milling & Ultrasonic Cleaning and Auction needs
Fanuc 32i CNC Control
Cool Blaster 850 Mist Collector
Cool Blaster CB510 High Pressure Coolant System
Edge Technologies C-320 Magazine Bar Feed (2011, s/n:C4201151217)
Lubrication System
(7) Tools
Ports
Hours:
Power On: 53,135
Run Time: 26,320
Cutting Time: 13,214
Machine has been fully service and packed prior to release
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Machine Diameter: 3/4" (20 mm)
Machine Length: 6 1/2" (165 mm)
Front Drilling Diameter: 1/4" (10 mm)
Front Tapping Diameter: M8
Spindle Hole: 1 1/4" (31 mm)
Main Spindle Speed: 8,000 RPM
Live Tool RPM: 6,000 RPM
Chuck Dia (Back Spindle): 3/4" (20 mm)
Back Spindle Speed: 8,000 RPM
# of Tools Mounted: 21
Turning Tools on the Gang Post: 5
Rotary Tools for Cross Machining: 4
Tools for Front Drilling: 4
Tools for Back Drilling: 8
Machine Dimensions: 8.5' x 5.8' x 6'
Machine Weight: 5,600 lbs
