Miraclean SonicCell Cube Precision Ultrasonic Parts Cleaner New:2011 | AB 604127
$32,500.00 USD
ConditionUsed
1 available

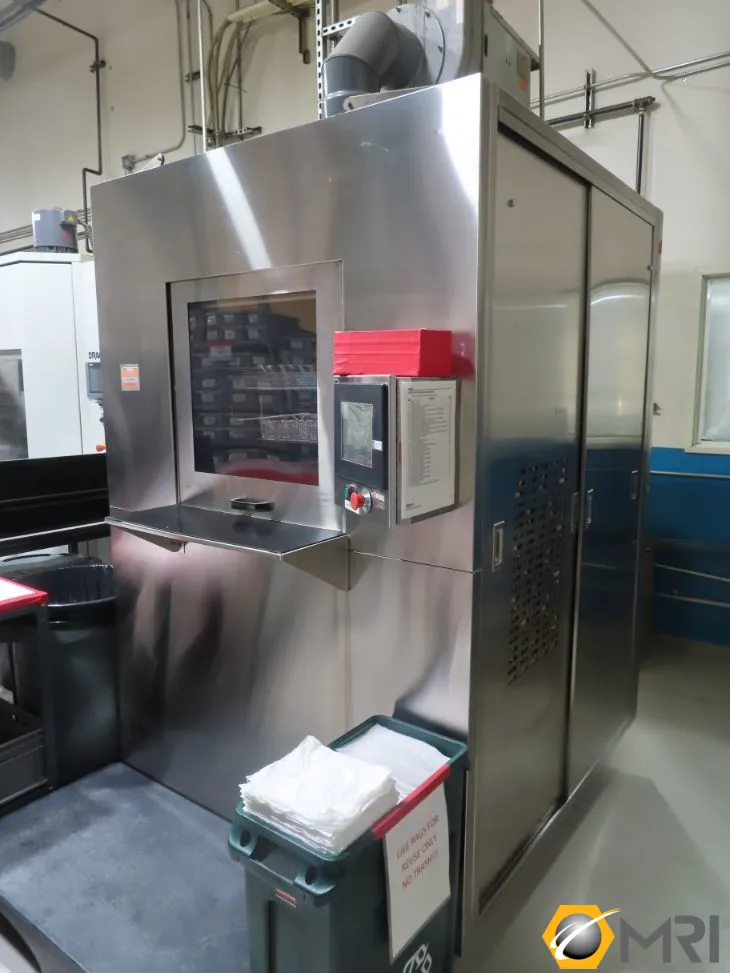

Miraclean SonicCell Cube Precision Ultrasonic Parts Cleaner, New 2011
Fully automatic & small footprint. System wash rinse and dries in a single station.
Excellent for infrequent parts loads that require precision cleaning
Ready to ship
Features and Specifications:
Vertical Agitation; Ultrasonic Rinse; DI Spray; Air Knife Rinse Cycle; Clean Sparger Pump; Clean Filter Spray Over Immersion; Ambient Air Blow Post Rinse
25 KHZ Side Clean Ultrasonics; 40 KHZ Bottom Ultrasonics Rinse
Plumbing: all external plumbing is the buyers responsibility.
OSHA Safety: Any OSHA required safety mechanisms may or may not be on this unit and bringing the unit up to OSHA Safety Standards is 100% the responsibility of the buyer.
DOM: 10 / 2011
Electrics: 480 Volt, 3 Phase, 60 Cycle
Largest Motor: .5 HP / CB Disconnect: 25 Amps / FLA: 20 Amps
NOTE: Not every facility uses a stand-a-lone Steam Exhaust Blower so, it is not included unless the Miraclean is sold a full-price; any negotiations on price will not include this item and is available separately: $850.00 (subject to availability and prior sale)
This unit requires user to either air-dry or acquire a dryer (blower-type, oven-type, spin-dryer)
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications: Please pay attention to details below, read carefully.
Main Voltage: 480 VAC / 3 Phase
Full Load Amps: 20 Amps
Frequency: 60 Hertz
Circuit Breaker Amperage Rating: 25 Amps
Short Circuit Rating: 5 KA
Motor Power: .5 HP
Control Voltage: 120 VAC / 24 VDC
Clean, Dry, Oil Free Compressed Air: 75 Peak SCFM @ 80 PSI, 23 Ave. SCFM
Vacuum Exhaust: 400 CFM @ 2" (wg) SP
Deionized Water: 2-3 GPM Flow Rate @ 40-80 PSI
Clean & Rinse Tank Temp: 170 Degrees F
Drain: Clean and Rinse Tanks
Clean Liquid Filter (X-110-A): 30" 10 Micron Poly Core. Poly Wound
#1. Cleaning Station
Work area: 14”DOT X 23”FB X 14”D (31 GALLON TANK)
Overflow weir - one sided, saw toothed Drain
Insulated Electric Heat: with controller to heat from ambient to 160 degrees F
in 3 hours
Ultrasonics:
• 2000W, 25kHz, sidemounted high efficiency immersible transducer
arrays with dedicated solid state generators
• 2000W, 40 kHz, bottommounted Agitation
Filter/Sparger System: stainless steel sparger (skims surface to separate overflow
weir), single chamber cartridge filter, air diaphragm pump
Spray over Immersion: dual parallel sidemounted spray headers to provide spray over
immersion
#2 - Hot Rinse Station with Spray over Immersion
Work area: 14”DOT X 23”FB X 14”D (24.3 GALLON TANK)
Overflow weir - one sided, saw toothed Drain
Insulated Electric Heat: with controller to heat from ambient to 160 degrees F
in 3 hours
Agitation Spray over Immersion: dual parallel sidemounted spray headers
to provide spray over immersion.
Customer supplied water
Air Blow off: 2 side mounted air knives above the spray off.
Customer supplied air
Ultrasonics: 2000W, 40kHz bottom mounted
PLC: Allen Bradley microprocessor with touch screen operation.
Instant Hot Water Heater: 36 kW- * Sandvik to Plumb and Wire Hot Water Heater
Note: Pump Module to Drain (this unit is not needed if buyer has a drain in close
proximately to the back of the system. It is available if needed, requires air for
diaphram pump & level control
(* Pump to Drain Module is approx 24: from the back of the machine but can be
plumbed to be further away or change of direction to take up less floor space.
Shipping dimensions:
Machine: 56" x 79"x 87" 3000 lbs ??
Pallet w/tray/filter/collector: 49" x 55" x 46" 800 lbs
Table: 36" x 30" x 36" 150 lbs
