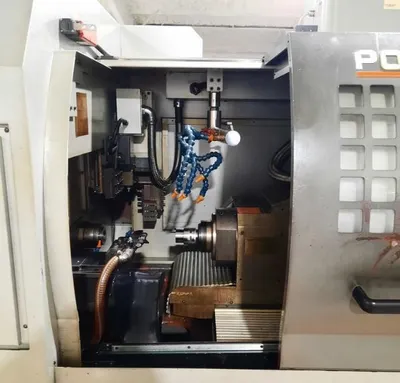

PoLy Gim Kobra 20SLY CNC Swiss Lathe, New 2011

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:

Number of Axes: 7
Maximum Turning Diameter: 20 mm (.78")
Max Machining length: 225mm (8.86")
80mm with live guide bushing
Max Drilling Diameter: 12mm
Max Tapping diameter: M10

Tooling
No. OD Tools 6
OD Tool Size 12x12x12mm
Live Cross Drills: 4
Cross Drill Size ER16
Cross Drill Speed: 6000 RPM
Front Working Live Tools: 6
Front Live Tool Size: ER16
Front Drill Tool Speed: 6000 RPM
Back Working ID Tools 4 live or 4 static
Back Working ID Tool Size: ER16
Back Working Driven Tool 3 (slide 1)
BW Tool Size: ER11 (slide 1)
BW Tools: 4 (post 1)
BW Tools Size: ER16
BW Tools Speed: 6000 RPM (1:1)

Main Spindle
Spindle Hole Diameter: 22mm (0.86")
Spindle Speed: 10000 RPM
Indexing: Full C Axis
Horsepower: 3 HP

Sub Spindle:
Spindle Hole Diameter: 22mm (.86")
Spindle Speed: 10000 RPM
Indexing: Full C Axis
Horsepower: 3 HP

Rapid Traverse:
X1, Y1, Z1, Z2: 1181 IPM
X2: 945 IPM
