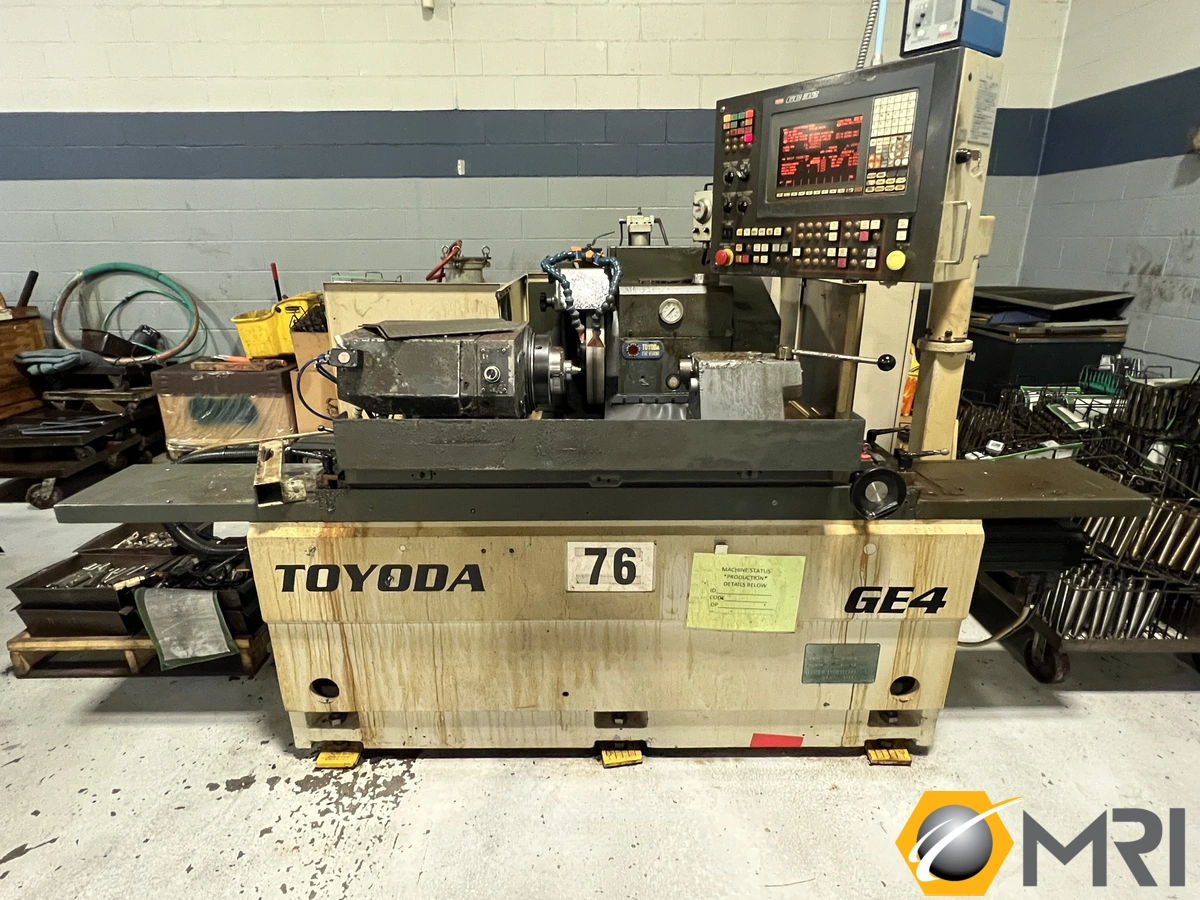

Toyoda GE4R-50 CNC Universal Cylindrical Grinder, New in 2004

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Specifications:
Grinding Length: 19.685"
OD Grinding Diameter(s) Max: 11.800"
Swing Diameter 12.6"
Workload 330 lbs

GRINDING WHEEL AND SPINDLE
Grinding Wheel Dia.: 16"
Grinding Wheel Bore: 3"
Wheel Head Motor: 5.00 hp / 1,550 rpm
Wheelhead Angle Adjustment: 12.5 deg
Workhead Motor: 1.43 hp
Workhead Speed: 500 rpm
Original Accuracy Resolution 0.000004"

Travel Max Feed / Rapid Rate
Longitudinal 19.685" / 394 ipm
Cross 11.80" / 394 ipm

Dimensions (approx.): 150" L x 106" W; 8,800 lbs
