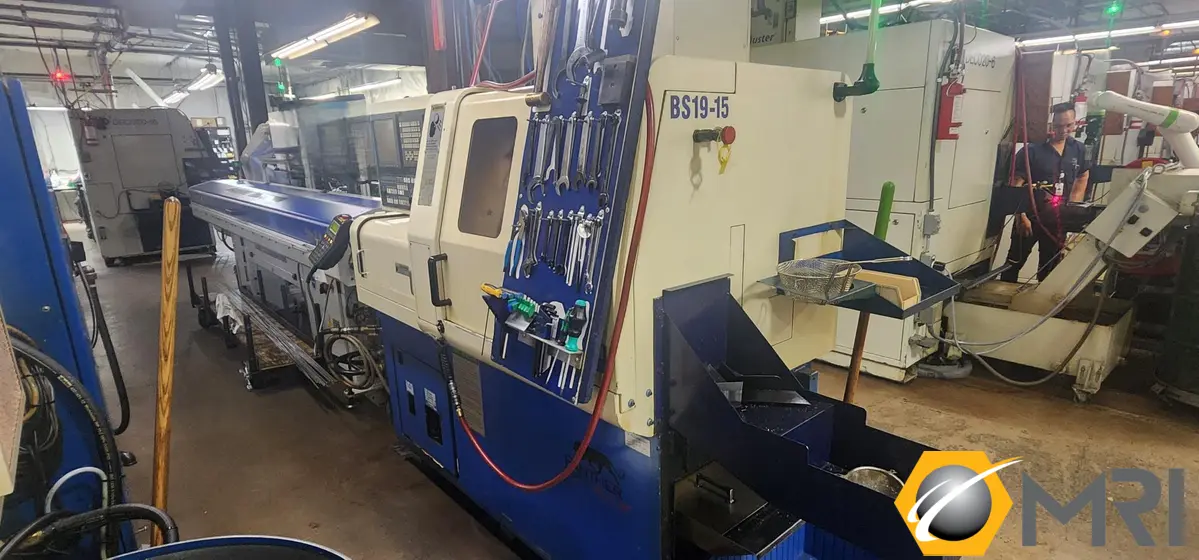

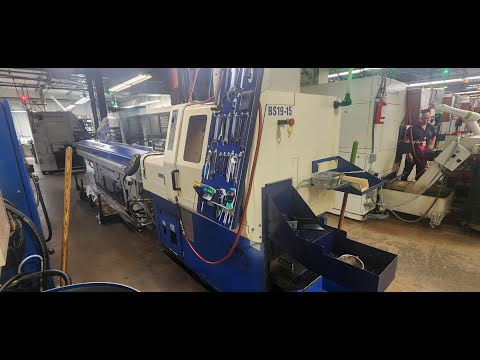

Tsugami BS-19BIII CNC Swiss Lathe, New in 2001

General Specifications per Manufacturer:

CNC Control: Fanuc LK1 (Fanuc 18isTA)
Controllable Axes: 5
Bar Stock Diameter: 19mm (0.748")
Maximum length: 8.26" (3.14" w/ RGB, 1.77" w/o GB)

Main Spindle:
Drive Motor: 1.1/3.7kw
Spindle Speed: 10,000 rpm
Index Increment: 15 deg.

Tool positions:
Cross Live Working Tool: 3 pos.
Front Working Stick Tools: 3 pos.
Back Working Stick Tools: 3 pos.
Front Cross Working Stick Tools: 7 pos.

Sub spindle:
Bar stock diameter: 19mm (0.748")
Drive motor: 0.75/1.1 kw
Spindle speed: 200-8000 rpm

Machine Dimensions: 6' x 4' x 5.5'
Machine Weight: 5000 lbs
