Kitamura HX250G Horizontal Machining Center, New in 2015
ConditionUsed
1 available
Kitamura HX250G Horizontal Machining Center, New in 2015
*3,200 Run Hours*
Arumatik-Mi CNC Control
Swiveling Control Panel Option
Blum In-Machine Tool Presetter
Blum TC-52 Spindle Probe
Losma Mist Collector (600cfm)
Kitamura Through Spindle Coolant System (220psi)
Air Through the Spindle (Air/Coolant Switching by M-code)
Stevens Eng. Tombstone P/N 100-2-110040-130-ST
Chick Quick Change Tower ( 4 sided ) 2 Dual, 2 Single Stations

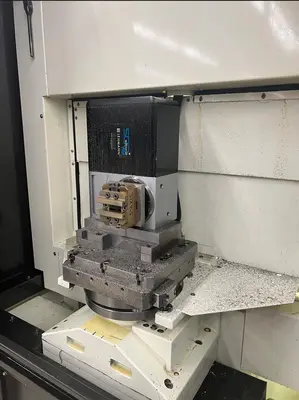

Lehman EA-511.L High Speed Rotary Table ( 5-Axis )
Wall Bushings
Erowa ERO>510-Qcix Quick Chuck 100 (Manual)
Face plate (160mm)
5C Collet Closer (Manual)
Lehman EA-511.L High Speed Rotary Table
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Table Size: 10" x 10"
Work piece Size: 13.78" x 15.5" (350mm Dia x 400mm H)
Table Load Capacity: 220 Lbs (100 Kg)
X-Axis Travel: 305 mm (12")
Y-Axis Travel: 305 mm (12")
Z-Axis Travel: 330 mm (13")
Distance from Table Surface to Spindle Center: 60-365 mm ( 2.4" - 14.4" )
Distance from Table Center to Spindle Nose: 60-390 mm ( 2.4" - 15.4" )
Spindle Taper: NST NO. 30
Spindle Speed: 15,000 RPM
Torque: 70 Nm ( 51.6 ft-lbf )
Rapid Feed (All Axes): 60,000 mm/min ( 2,362.2 IPM )
Tool Positions: 40 Tools
Tool Selection Method: Random, Tool identified at magazine
Tool Shank: MAS BT30
Tool Size with 2 Neighboring Tool Pockets Empty: 75 mm Dia x 200 mm 3" x 7.9"
Tool Weight (with tool holder): 2 kg ( 4.4 lb )
Spindle Motor (30 min): AC 11.0 KW ( 14.75 HP )
Spindle Motor (Continuous Operation): AC 7.5 KW (10 HP)
Power Requirement: 30 KVA (200/220V AC/3 Phase)
Air Requirement: 150 L/min (ANR), 0.5 MPa
Machine Dimensions: 116.5" x 111.15" x 89.9"
Machine Weight: 5,800 kg (12,790 Lb )
