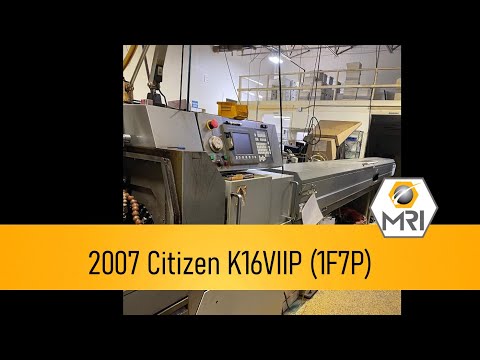

Citizen K16VIIP (1F7P) CNC Swiss Lathe New:2007| AB 604747
$39,500.00 USD
ConditionUsed
1 available

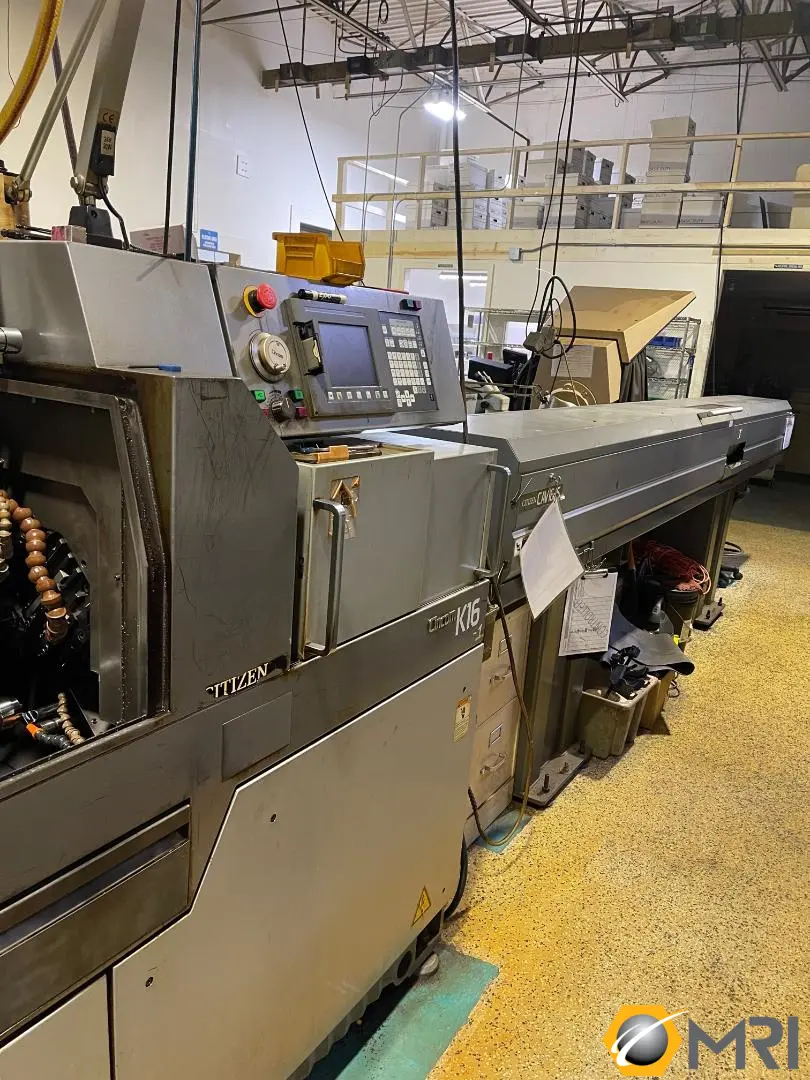

Citizen K16VIIP (1F7P) CNC Swiss Lathe, New in 2007
5/8" cap high-speed machine cap, with 15000 RPM, full C-axis, Live tooling and CAV Bar Loader
High quality CNC Swiss is our focus. Machinery Resources has carefully prepared our machines for shipping.
Of course, all customer have an open invite to inspect any of our inventory
Trust Machinery Resources for all your CNC Swiss, Turning, Barfeeds, Milling & Ultrasonic Cleaning and Auction needs
Fanuc 31i CNC Control
Citizen CAV16-IS 12' Magazine Bar Feed
Cool Blast Mist Collector 850
Parts Conveyor
4 live Tools
Misc Collets and Bushings
Machine will be packed for shipping prior to release
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
CNC Control: Citizen (Fanuc)
Maximum Machining Diameter: 16mm (5/8")
Maximum Machining Length: 200mm
Main Spindle Speeds: 200 - 15,000 RPM
Main Spindle Indexing: C-Axis
Back Spindle Speeds: 200 - 10,000 RPM
Sub-Spindle Indexing: C-Axis
Rotary Tool Speeds: 200 - 6,000 RPM
Back Spindle Max Chucking Diameter: 20mm
Turning Tools: 5
Rotary (Live) Tools: 4
Front Endworking Tools: 3
Back Endworking Tools: 3
Rapid Traverse (X/Y/Z): 20 m/min
Main Spindle Drive: 3.7 KW
Back Spindle Drive: .15 KW
Rotary Tool Drive: .75 KW
Electrics: 220 Volt 3 Phase
Shipping dimensions:
Machine: 72” x 45” x 82” 4,700 lbs
Chip Pan: 40” x 38” x 25” 500 lbs
CAV 16-IS barfeed: 18’ x 2.5’ x 6’ 2,500 lbs
