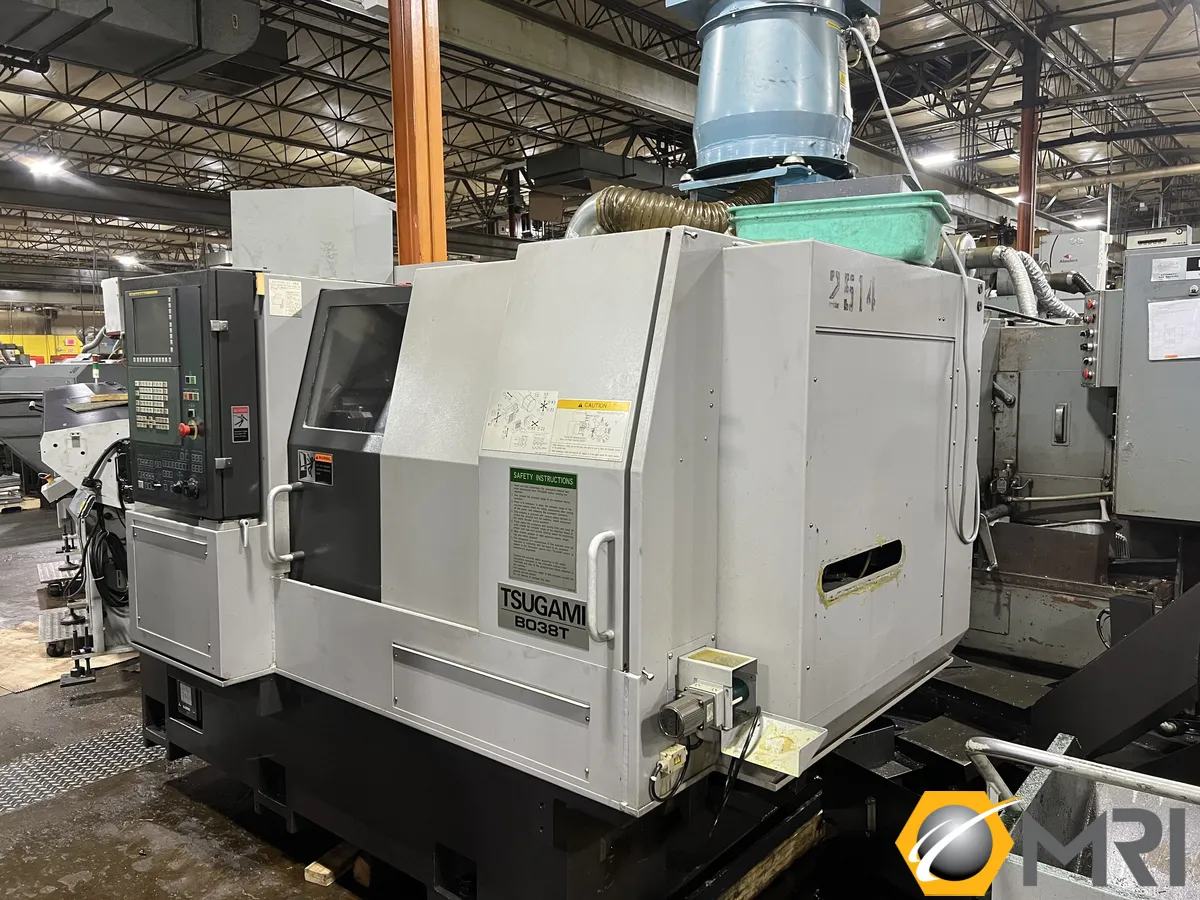

Tsugami BO38T CNC Gang-Turret Swiss Lathe, New 2016
Fanuc 31i-B CNC Control
Edge Patriot 338 Barfeed (25mm Pusher & Channel)
MP Systems 5-Line High Pressure Coolant System (AT V-2 HW8 SD)
Mist Collector
Sub Spindle Ejector
Long Parts Attachment
All Available Manuals and Tooling
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Axis names: X1,Y1,Z1,C1,X2,Y2,Z2,C2,X3,Y3,Z3
Least input increment: 0.001mm (X1, X2, X3 axes in diameter)
Machining Range, machining capacity:
Bars tock diameter: 8-38mm
Max. machining length: 250mm
Main Spindle
Max drilling diameter: 16mm
Max tapping size: M14
Back Spindle-Turret
Max chucking diameter: 38mm
Max drilling diameter: 16mm
Max tapping size: M12
Front Tool Post
Max crossing drilling diameter: 10mm
Max crossing tapping size: M6
Turret
Max rotary tool drilling diameter: 16mm
Max rotary tool tapping size: M10
Back Tool Post:
Max rotary tool drilling diameter: 8mm
Max rotary tool tapping size: M6
Max fixed tool drilling diameter: 10mm
Max fixed tool tapping size: M10
Machine
Main spindle speed: 200 - 5,000 min
Back spindle speed: 200 - 7,000 min
Cross drill speed on front tool post:200 - 5,000 min (optional)
Rotary tool speed on turret: 200 - 8,000 min
Main spindle indexing: C axis
Back spindle indexing: C axis
Total tool storage capacity
Turret: 8 stations (4x8 stations = 32)
Front tool post (standard): Turning: 7
Front tool post: Turning: 3
Front tool post: Cross drill: 3 (optional)
Back tool post: fixed:3, live: 3
Tool size
Turret: 20mm x 20mm x 125mm
Front tool post: 16mm x 16mm x 125mm
Rapid traverse rate
X1, X2, X3: 24 m/min
Y1, Y2, Y3: 24 m/min
Z1, Z2, Z3: 24 m/min
Motors
Main Spindle: 7.5/11kW
Back Spindle: 3.7/5.5 kW
Live tool on front tool post: 1.0kW
Live tool on turret: 1.4 kW
Live tool on back tool post: 1.0kW
Coolant pump: 0.39/0.62kW (50Hz/60Hz)
Lubricating oil pump: 3 W
Power source and other
Net Weight: 6,200 kg, 13,700 lbs
Power source requirement: 45 KVA
Compressed air requirement: 0.5 MPa or more
Air discharge rate: 100 NL/min
Machine Dimensions: 135" x 74" x 73"
**(44" for chip conveyor/long part attachment)
