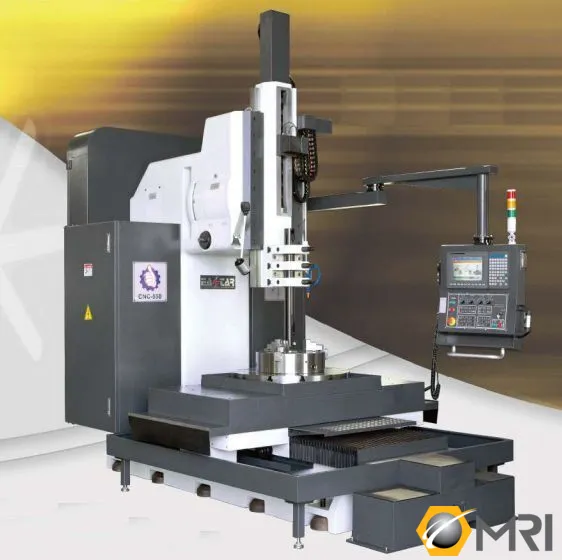

Eastar CNC-550 CNC Vertical Slotting Machine, New:2020 | SB 604849

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

***** See OEM Brochure attached ****

General Specifications:
Stroke of Ram: 21.6"
Ram Adjustable Distance: 28.5"
Strokes Per Minute: 5-60
Swivel Angle of Ram (Left/Right): +20 Degrees
Distance from End of Ram Guide to Working Table: 34.4"
Distance from Tool Center to Column: 90mm / 940mm
Distance from Table Center to Column: 25.5" - 57.1"
Distance from Working Table to Ground: 34.6"
Diameter of Working Table: 33.5"
Bore of Working Table: 8"
Table Load: 4,409 lbs
Y-Axis Travel: 31.8"
X-Axis Travel: 33.5"
Rapid Feedrate (X/Y) (C: Swiveling Axis): 590 IPM
Cutting Feedrate (X/Y) (C: Swiveling Axis): 393 IPM
Tool Holder Size (Round/Square): 3.54" / 3.77"
Ram Driving Motor: 20 HP
Positioning Accuracy (X,Y/C): +0.005 / 40"
Reciprocating Feed Accuracy (X,Y/C): +0.005 / +5"
Coolant Pump Motor: 1/2 HP
X-Axis AC Servo Motor: 5.8HP (4.4kw)
Y-Axis AC Servo Motor: 7.5HP (5.5kW)
Z-Axis AC Servo Motor: 2.5HP (2kW)
C-Axis AC Servo Motor: 5.8HP (4.4kW)
Electrics: 220v / 3PH / 60 Hz

Machine Dimensions: 130" x 78.7" x 169"
Machine Weight: 20,833 lbs
