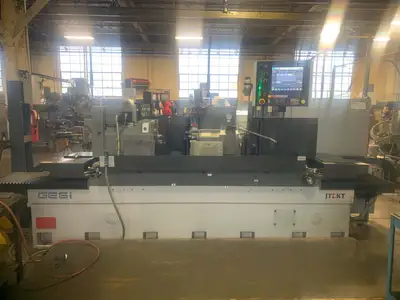

Toyoda GE6Pi-100 CNC OD Grinder, New in 2022, Almost new condition
ConditionUsed
1 available
Toyoda GE6Pi-100 CNC Universal OD Grinder, New in 2022
Top of the Line
State-of-the-Art
Dead Workhead
Manual Footstock
105 Gallon Coolant Tank
Radius crowning traverse grinding cycle
Note: This machine has a replacement cost over $435,000
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Machine Capacity:
Swing: 22.0″ (560 mm)
Distance Between Centers: 39.4″ (1,000 mm)
Grinding Diameter: 21.6″ (550 mm)
Load Between Centers: 1,100 lbs (500 kg)
Centerline Height from Floor: 46.45” (1,180 mm)
Wheel Head:
Wheel Size (OD x ID): 24″ x 10″ (610 mm x 254 mm)
Wheel Use Range: 24″ to 16.93″ (610 mm to 430 mm)*
Maximum Standard Wheel Width: 2.95″ (75 mm)
Standard Wheel Surface Speed: 6,500 SFPM (33 m/s)
Spindle: TOYODA STAT® Bearing
Move Increment (on diameter): 0.000010” (0.0001 mm)
Wheel Head Rapid Feed (on diameter): 590 IPM (15 m/min)
Slide: V and Flat Slide, 90° slide
Table:
Type: Two (2) Piece Swiveling/Traversing
Table Swivel (CCW to CW): 4° to 0°
Table Stroke**: 48.6” (1,235 mm)
Slide: V and Flat Slide
Move Increment: 0.000010” (0.0001 mm)
Table Rapid Feed: 511 IPM (13 m/min)
Workhead:
Type: Dead Spindle
Workhead Center Taper: MT #5
Work Speed (Variable): 7 to 140 rpm
Footstock:
Type**: Manual
Footstock Center: MT #5
Center Retraction: 1.25″ (32 mm) by lever, 1.18″ (30 mm) by manual position adjust wheel
Dresser:
Type: Stationary Diamond Holder
Location: Workhead Mount
Motors:
Wheel Drive Motor (4P): 15 hp (11 kW)
Work Drive Motor (Brushless AC Servomotor): 4.69 hp (3.5 kW)
Wheelhead Feed Drive Motor (Brushless AC Servomotor): 4.15 hp (3.1 kW)
Table Feed Drive Motor (Brushless AC Servomotor): 6.7 hp (5 kW)
Lubricant Pump Motor (4P): .27 hp (.2 kW)
Wheel Spindle Lubrication Motor (2P) Fan Cooler for Spindle Oil (4P): .67 hp (.5 kW), .1 hp (.08kW)
Power Requirement:200 Volt, 3-Phase, 60 Hz
Fluid Capacities:
Spindle Oil Lube Tank (Mobil Velocite #6): 3.7 gal (14 lt)
Lubrication Tank (Mobil Vacuoline 1409): 5.2 gal (20 lt)
Coolant Tank: 92 gal (350 lt)
Machine Dimensions: 197" x 137"
Machine Weight: 17,636 lbs
