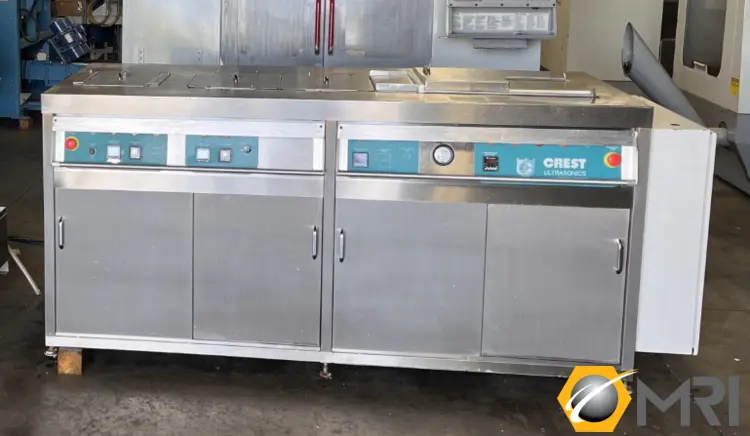

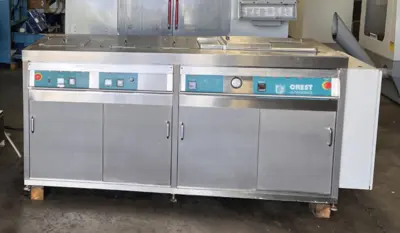

2007 Crest OC4-1014HE Optimum Console Aqueous Ultrasonic Cleaning System

To the best of our knowledge all details listed below are deemed correct. It
is the buyer's responsibility to confirm all details and we encourage an
inspection of the machine(s) and accessories prior to purchase.

===========================================================================

OC4-1014-HE - Four Stations Optimum Console (Excellent condition)
Tank Dimensions: 10" l-r x 14" f-b x 10" d (8" liquid depth)
Overall Dimensions: 80" l-r x 34" f-b x 39" h
Process: Wash, Rinse, Rinse, Dry
Chemistry: Aqueous Cleaning Solution, R/O or Deionized Water

1-3 GPM (4-6 GPM on demand) DIW@ 1-12 Mohm, 30-35 psi and process
temperature, 65-70 CFM CDA @ 30 psi, 1-2 CFM shop air @ 60 psi,
unrestricted floor drain.
Power Requirements: 240 volts/60 Hz/3 phase.
Work Flow: Left to Right.

FULL SYSTEM DETAILS:
Station #1: Ultrasonic Immersion Wash
Maximum Temperature: 160 F
Ultrasonic Frequency: 40 kHz (
Ultrasonic Power: 500 watts of ultrasonic power provided by:
Six (6) transducer modules direct-bonded to the bottom of the tank.
One (1) Model CG-500-40-T ultrasonic generator.
Heat: 2000 watts of strip heat.
Temperature control: Digital indicating temperature controller with a
RTD-type temperature probe.
Filtration: A 5 GPM recirculation/filtration system with:
One (1) wye strainer.
One (1) centrifugal, mag-drive pump, with:
Ryton head.
Viton o-ring.
TEFC motor.
One (1) 10", 10 micron cartridge filter housed in a stainless steel
canister.
One (1) analog pressure gauge.
Manual flow control valves.
One (1) recirculation returns surface sparger.
Standard Features:
electronic ultrasonic cycle timer.
float-type low liquid level safety.
capillary bulb-type overtemperature safety thermostat.
basket positioner.
stainless steel lift off cover.
rear overflow weir plumbed to the recirculation system.
Plumbing: Stainless steel compression fittings up to
1" OD.
Stainless steel threaded pipe 3/4_" to 1-1/2" wherever
necessary.

Station #2: Ultrasonic Spray-Over-Immersion Rinse
Maximum Temperature: 120 F
Ultrasonic Power: 500 watts of ultrasonic power provided by:
Six (6) transducer modules direct-bonded to the bottom of the tank.
One (1) Model CG-500-40-T ultrasonic generator tank.
One (1) Model MW 500 GTI 132 ultrasonic generator.
Heat: 2000 watts of strip heat.
Temperature control: Digital indicating temperature controller with a
RTD-type temperature probe.
Spray rinse: Stationary spray rinse package, with:
One (1) set of parallel-opposed spray rinse headers that are:
Fitted with removable nozzles.
Located near the top of the tank.
A solenoid valve on the incoming water line.
The solenoid is controlled via a footswitch.
Standard Features:
electronic ultrasonic cycle timer.
float-type low liquid level safety.
capillary bulb-type overtemperature safety thermostat.
basket positioner.
stainless steel lift off cover.
side-located overflow weir plumbed to drain.
Plumbing: CPVC pipe and fitting for incoming and drain.

Station #3: Spray-Over-Immersion Rinse
Maximum Temperature: 120 F
Ultrasonic Power: 500 watts of ultrasonic power provided by:
Six (6) transducer modules direct-bonded to the bottom of the tank.
One (1) Model CG-500-40-T ultrasonic generator.(optional)
Heat: 2000 watts of strip heat.
Temperature control: Digital indicating temperature controller with a
RTD-type temperature probe.
Spray rinse: Stationary spray rinse package, with:
One (1) set of parallel-opposed spray rinse headers that are:
Fitted with removable nozzles.
Located near the top of the tank.
solenoid valve on the incoming water line.
The solenoid is controlled via a footswitch.
Standard Features: A float-type low liquid level safety.
capillary bulb-type overtemperature safety thermostat.
basket positioner.
stainless steel lift off cover.
side-located overflow baffle with cascade flow to
Station #2.
Plumbing: CPVC pipe and fitting for incoming and drain

Station #4: Recirculating Hot Air Dry
Maximum Temperature: 180 F
Heat 5000 watts of heat.
Temperature control: Digital indicating temperature controller with a
RTD-type temperature probe.
Blower: An 1100 CFM recirculating blower in the updraft orientation.
Blow-off: A stationary blow-off package, with:
One (1) set of parallel-opposed air blow-off headers
that are:
Located near the top of the tank.
solenoid valve on the incoming air line.
The solenoid is controlled via a pushbutton.
Cover: A manual sliding cover.
Plumbing: Stainless steel tubing and fittings and brass
valves.

System Notes: The general system specifications are as follows:
Tank Material: Type 316L stainless steel with a #2B finish
Frame Material: Type 304 stainless steel support frame with leveling legs.
Access Panels: Type 304 stainless steel, lift-out access panels on the
sides and rear.
Type 304, #4 finish, stainless steel sliding access doors
on the front.
Countertop: A type 304 stainless steel, removable, countertop. The
countertop will be fitted with a 304 stainless steel,
removable drainbacks (between the process stations).
Base Plate: A type 304 stainless steel base plate.
Plumbing: Complete hard plumbed process piping:
Individual fill and drain connections (at the rear
utility panel) will be provided for the wash station.
Common fill and drain connections (at the rear utility
panel) will be provided for the cascade rinse stations.
All appropriate flow control and isolation ball valves.
Electrical Box: Single-point electrical connection located in an
end-mounted NEMA 12 enclosure.

Options:
Item #2: 0.3 Micron HEPA Filter including a differential pressure gauge.
(Recommend maintenance replacement)

Item #3: Basket: System Includes 4 ea.
Model B-1014-4 Stainless Steel Work Basket. Fabricated from type 304
stainless steel. Mesh size:
" (other mesh sizes available). Design to hold 30 lbs. of parts.
