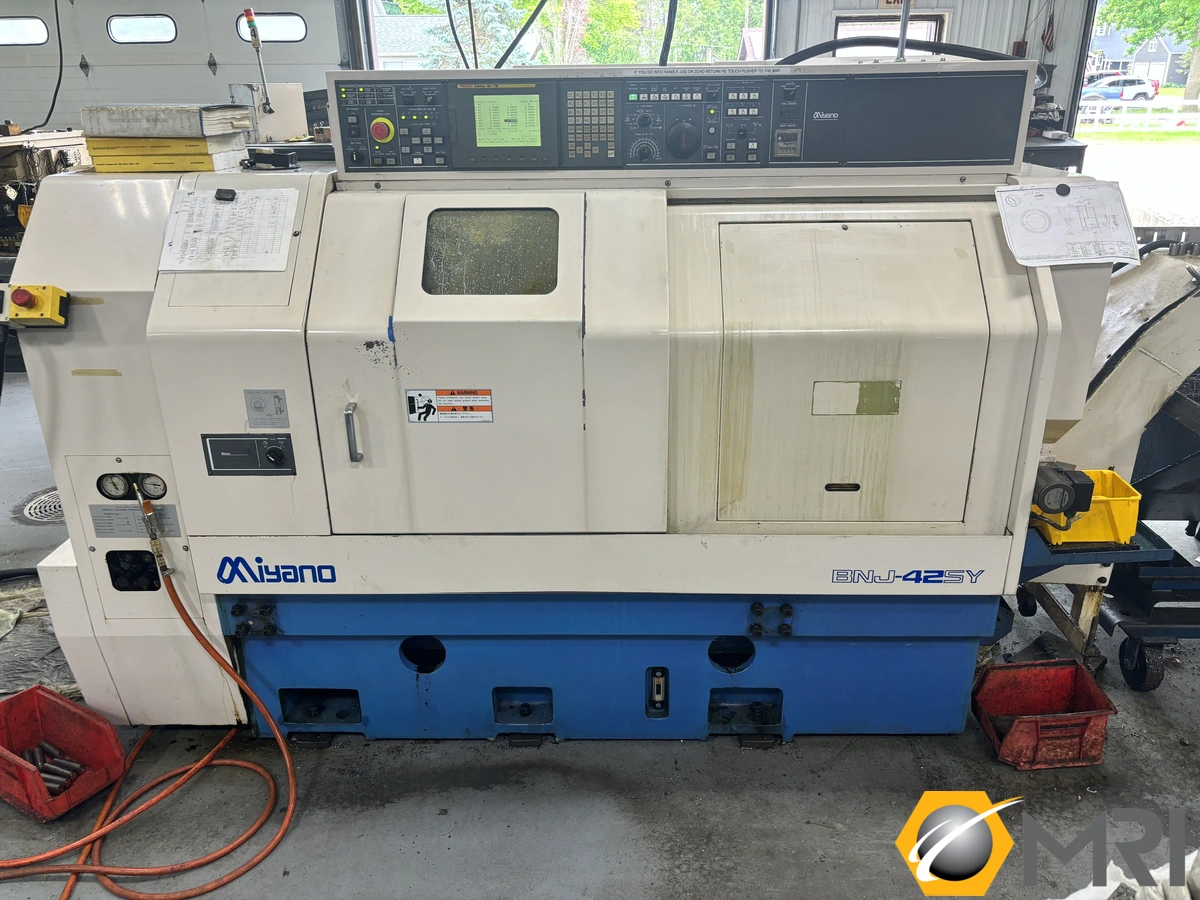

Miyano BNJ-42SY CNC Turning Center, New in 2007

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications (L - Left Spindle / R - Right Spindle):
Power Chuck & Size (L/R): 5" / 4"
Bar Capacity: 1.65"
Type of Collet Chuck: Stationary
Turning Length (L/R): 4"/ 3.1"
Spindle Motor (L/R): 14/6.7 HP
Spindle Speed (L/R): 5,000 RPM

Axis Travels:
X1-Axis Travel: 6.10"
X2-Axis Travel: 2.7"
Y1-Axis Travel: +1.18"
Z1-Axis Travel: 9.8"
Z2-Axis Travel: 20.2"

Main Turret
Positions: 12
Indexing Time: 0.2 Seconds Per Station
Turret Indexing Method: Curvic C & AC Servo

Back Working Turret
Positions: 6
Turret/Indexing: 0.25 Seconds Per Station
Turret Indexing Method: Curvic C & AC Servo

Revolving Tools (Main Turret)
Number of Revolving Stations: 6
Tool Spindle Speed Range: 4,000 RPM
Tool Spindle Driving Motor: AC Servo 3.3 HP
Machining Capacity Drill/Tap: 0.5" / M8 x 1.25

Machine Dimensions: 106" x 58" x 67"
Machine Weight: 10,140 lbs
