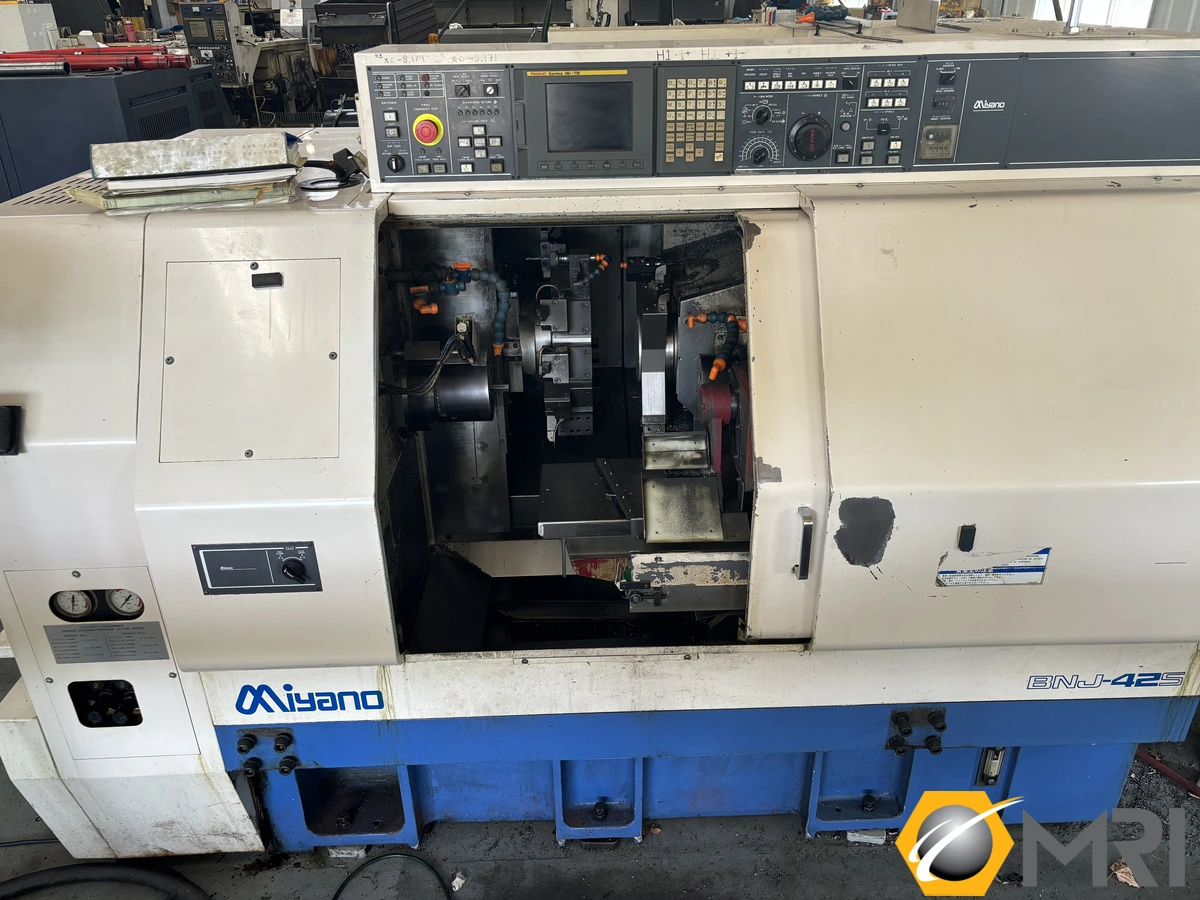

Miyano BNJ-42S CNC Turning Center, New in 2004

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Work Length: 3.9"
Turning Diameter (Main): 5"
Turning Diameter (Sub): 4"
Bar Capacity: 1.65"
Spindle Speed: 5,000 RPM
Main Motor: 10 HP
Sub Spindle Motor: 5 HP
Turret Capacity: 12
Turret Index Time: .2 seconds
X1-Slide Travel: 6.10"
Z1-Slide Travel: 9.84"
Back Turret Capacity: 6
Turret Index Time: .2 seconds
X2-Slide Travel: 2.75"
Z2-Slide Travel: 20.3"

Machine Dimensions: 106" x 59" x 68"
Machine Weight: 10,140 lbs
