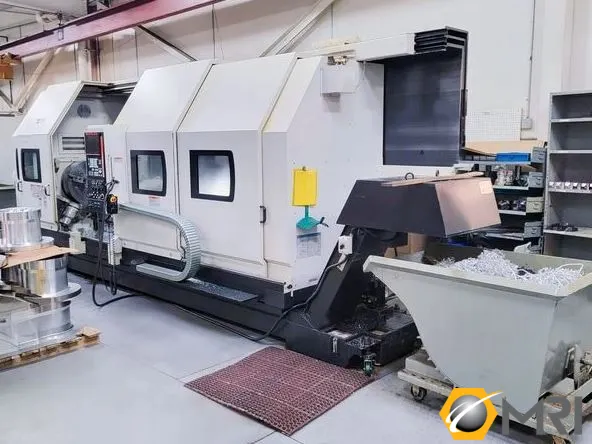

Mazak Slant Turn 50N CNC Turning Center, New in 2008| SB 605123

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Chuck I.D. Is 6.25" with a depth of 51¾" to the face and through hole is 4.5"

General Specifications:
Swing: 31.7"
Chuck Size: 16" (SMW)
Cutting Diameter: 22.05"
Cutting Length: 118"
Spindle Speed: 1,500 RPM
Spindle Nose: A2-15
Spindle Bore: 7.1"
Spindle Motor: 50 HP
X-Axis Travel: 22.64"
Z-Axis Travel: 118"
Rapid Traverse (X/Z): 472 / 551 IPM
Steady Rest Travel: 1.18" - 9.64"
Tool Positions: 15 (10 OD / 5 ID)

Machine Weight: 30,860 lbs
