Graymills TUS3725SL-J Ultrasonic Washing w/ LiftKleen Immersion Rinse Tank | AB

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

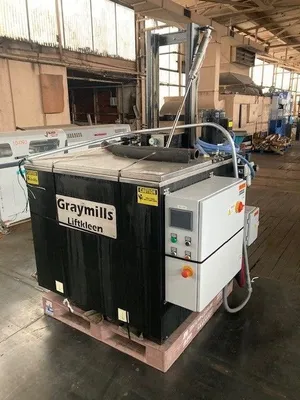

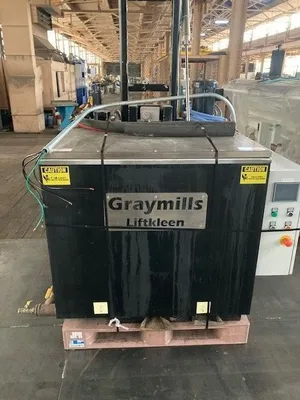

General Specifications for LiftKleen LKR36 Immersion Parts Washer:
Over Machine Dimensions: 51" x 45" x 76"
Tank Dimensions: 39" x 28" x 20" (Liquid Depth)
Liquid Capacity: 170 Gallons
Lift Platform Width: 35.5" x 24"
Lift Capacity: 550 lbs @ 100 PSI
Stroke Length: 5"
Strokes Per Minute: 25-40
Air Inlet: 3/8"
Drain: 2"
Drop in Heater Power: 8.85 kW
Number of Heaters: 2
Extra Lift Capacity: 1,000 lbs @ 100 PSI
Agitation Pump Power: 1.5 HP
Agitation Pump Performance: 10,000 GPH
Power Configuration: 230/60/3
Construction: 10/12 Gauge, Mild or Stainless Steel Construction, Insulated

Standard Features for all L-Series Models:

-Air-operated lift platform for ease of loading and unloading
-Hands-off, full immersion cleaning; from simple soaking to lift platform agitation
-Adjustable lift platform agitation—speed and stroke length
-Lift mechanism is entirely outside of tank for long service life
-Stainless steel lined lids
-ALL heated units will come standard with Low Liquid Heater Protection to disable heaters and prevent damage to machine in a low liquid situation
-Auto-lid opens at end of cycle or upon machine reset

The immersion cleaning exposes all surfaces of the part, including blind holes and
small crevices, to the cleaning solution.
By combining hands-off, total immersion cleaning, easy part load/unload, vertical
lift platform agitation and optional Graymills Superflo™ pump jet action, the
Liftkleen™ offers the most intensive, efficient immersion cleaning system available.
Complex parts, stacked or nested parts are no problem.

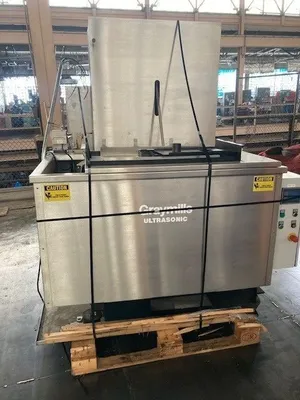

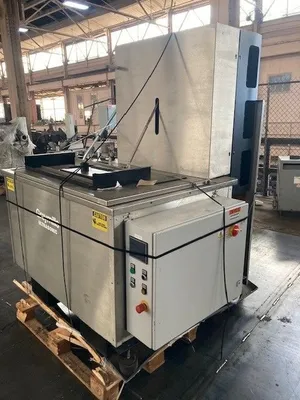

General Specifications for TUS3725SL-J Ultrasonic Parts Washer
Overall Machine Dimensions: 55” x 66” x 72”
Immersion Space: 37" x 25" x 14" (Max Part Height)
Platform Dimensions: 37" x 25"
Liquid Capacity: 150 Gallons
Lift Capacity: 300 lbs @ 100 PSI
Stroke Length: 4"
Strokes Per Minute: 25-40
Air Inlet: 3/8"
Ultrasonic Power: 3,000 W
Ultrasonic Frequency: 40kHz Standard, 25kHz and 68kHz Optional
Heater Control: Digital
Heater Range: Ambient to 180 Degrees F
Heater Power: 13.5kW
Electrical: 230/60/3
Floor-to-Lip Height: 35” (Will need a 4-1/4” platform to line up with LK36)

Unlike standard spray cabinet washers, immersion cleaning exposes all surfaces of the
part, including blind holes and small crevices, to the cleaning solution.
By combining hands-off, total immersion cleaning, easy part load/unload, vertical
lift platform agitation and ultrasonic cleaning action, the SuperSonic Liftkleen
takes the benefits of the Sonic Liftkleen and offers the most thorough, intensive,
and efficient ultrasonic immersion cleaning system available.

SuperSonic Liftkleen Standard Features:

-Full PLC Control with Touch Screen Interface provides programmable cycles for
ultrasonics, platform oscillation, soak, sparger, filtration and heater functions
up to 180°F (82°C)
-Ultrasonic frequency sweep continuously changes sound patterns to provide greater
cleaning penetration while minimizing risk of damage
-Heavy duty immersible sealed transducers evenly distribute the ultrasonic sound waves
and eliminate cleaning blind spots
-Pneumatic lift platform allows easy loading/unloading of parts up to 300 pounds and offers agitation capabilities for thorough parts cleaning
-Automated lid open/close via pneumatic cylinder allows for hands-free operation
-Built in weir and surface sparger system removes floating oil and debris from the top of cleaning solution so parts are not dragged through the floating contaminant at the end of the cleaning cycle
-Oil skimmer removes oil from weir chamber

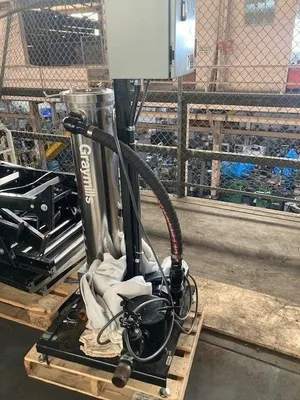

-OPTIONAL High-Volume Filtration system constantly filters the cleaning solution to extend bath life and deliver more consistent cleaning
-Double walled, fully insulated stainless steel tank and lid prevents heat loss, evaporation and reduces noise
-Bottom drain and valve for easy change out of cleaning solution
-24/7 programmable heater and skimmer timers
-Standard with Low Liquid Heater Protection to disable heaters and prevent damage to machine in a low liquid situation
-Supervisor code in HMI to prevent parameter changes by operators
