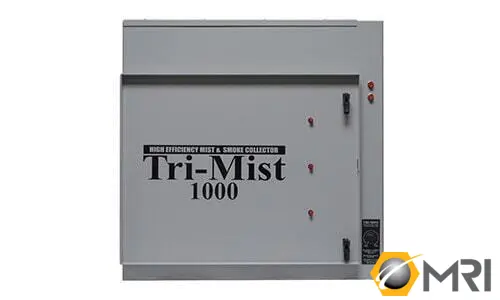

New Tri-Mist 1000 High Efficiency Mist & Smoke Collector
ConditionNew
New
New Tri-Mist 1000 High Efficiency Mist & Smoke Collector
Additional Features:
Triple Pass ESP Technology
Coated cells
Motor and control prewired
Variable Speed Controller
Optional Accessories
Machine Mount with Stands:............$362.11 EA
Plenum w/ (2) 6" Collar:....................$537.39 EA
6" Black Flex Duct: ............................$426.08 (8')
6" / 8" Hose Clamps:.........................$29.20 EA (Pack of 2)
1/2 NPT Elbow:..................................$12.90 EA
1/2 ID Tubing:....................................$32.56 (Pack of 12)
Ceiling Hanging Kit:...........................$POR
Source Capture Plenums:.................$POR
Delivery - 2-3 Weeks
General Specifications as per Brochure:
Dimensions: 26” x 13.75” x 26”
Inlet Opening: 16.70” x 9.10”
Cabinet: 16 ga Steel welded with chemical resistant powder paint
Weight: 115 lbs Installed;
145 lbs. Shipping
Efficiency: Up to 99% per ASHRAE 52.2
Filtration:
1st Stage: (2) 4" mechanical impingers
2nd Stage: ESP cell 53 sq. ft. of surface area
(Minimum voltage gradient is 20,000 volts per inch.)
3rd & 4th Stage: ESP cell 53 sq. ft. of surface area.
5th Stage: 1" thick post filter
6th Stage: Optional HEPAMAX filter rated at 99.97% DOP @ .3 micron.
Airflow: 50-1000 CFM
ESP Power Supply: Solid state & self-regulating.
Electrical Rating: 115 V , 50-60 HZ, 4 amps.
Impeller: Vibration free, backward curve rated at 1050 cfm @ 0.0" w.g.
Sound Levels: 69 dBa
**Voltage must be specified when ordered**
Input voltage cannot be changed in the field.
Other Power Options Available:
Tri-Mist 1000 (208-230 V, 50-60 HZ, 2 amps).....$5,550.00
Tri-Mist 1000 (390/460VAC, 50/60HZ, 1 amp).......$5,800.00
