Hwacheon Hi-Tech 230BL YSMC CNC Turning Center, New in 2018
ConditionUsed
1 available
Hwacheon Hi-Tech 230BL YSMC CNC Turning Center, New in 2018

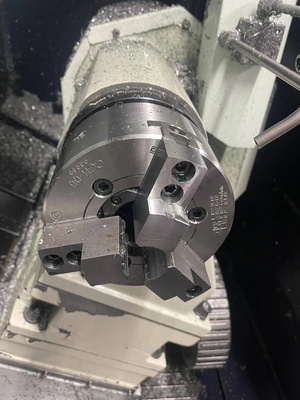

Chuck sizes: 10″ Main Spindle/6″ Hydraulic on Sub-Spindle
Swing/Over Carriage: 29.55″ / 15.76″
Cutting Diameter: 15.76″
Cutting Length: 22.06″
X-Axis Travel: 9.456″
Y-Axis Travel: 4.728″
Z-Axis Travel: 27.58″
B-Axis Travel (Sub-Spindle): 26.18″
Spindle Nose / Spindle Bore / Bar Capacity: A2-8″ / 3.58″ / 3.19″
Spindle Speed / Sub Spindle Speed: 3,500 RPM / 5,000 RPM
Spindle Motor / Sub Spindle Motor: 25 HP / 10 HP
Rotary Tool Speed / Rotary Motor: 4,000 RPM / 7.4 HP
Turret Positions:12 Sided / 24 Stations
Rapid Traverse Rates X, B / Z: 1182 IPM, 945 IPM / 1182 IPM
Machine Dimensions: 116″ x 74″ x 73″ approx.
Machine Weight: 12,500 lbs
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
