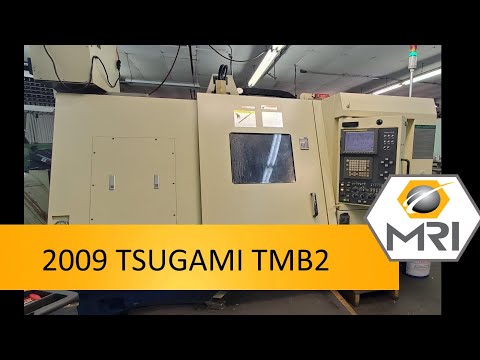

Tsugami TMB2 CNC Lathe Precision Turning Center New:2009| AB 605411

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s)
and accessories prior to purchase.
Specs Direct from OEM Brochure. see Attached

Max. barstock diameter: 2.0" (51mm)
Max. machining length: 22.8" (580 mm)
X-axis stroke: 14.9" (380 mm)
Y-axis stroke: 4.33" (110 mm (+55/-55 mm))
Z-axis stroke: 22.0" (560 mm (+ 135mm))
A-axis stroke: 31.49" (800 mm)
Max. spindle speed: 6,000 min-1
C1-axis: least index angle 0.001°
Chuck size: 8”
Motor output: 20/15 Hp (15/11 kW)
Max. spindle speed: 5,000 min-1

C2-axis: least index angle 0.001°
Chuck size: 6 inch
Motor output: 10/7.5 Hp (7.5/5.5 kW)
Max tool diameter: 3.1" (80mm)

Type of tool spindle Single tool spindle with ATC
Motor output: 15/7.5 Hp (11/5.5 kW)
B-axis index angle: -15° to 195°
B-axis: least index angle 0.001° (Continuous control)

Tool spindle indexing angle/position: 90°/4 positions
Max. tool spindle speed: 10,000 min-1
Max tool length: 3.1" x 5.9" (80mm x 150mm (4kg))

Tool shank configuration CAPTO C4
Tool storage capacity: 60 stations

Machine height 2,140 mm (84.25”)
Floor requirements 3,700 mm x 2,126 mm (145.67” x 83.7”)
Machine weight 8,500 kg (18,739 lbs.)
