Crest COC6-1826-HE 6-tank / 8-station Ultrasonic Cleaning System, New 2024 "Never Used"

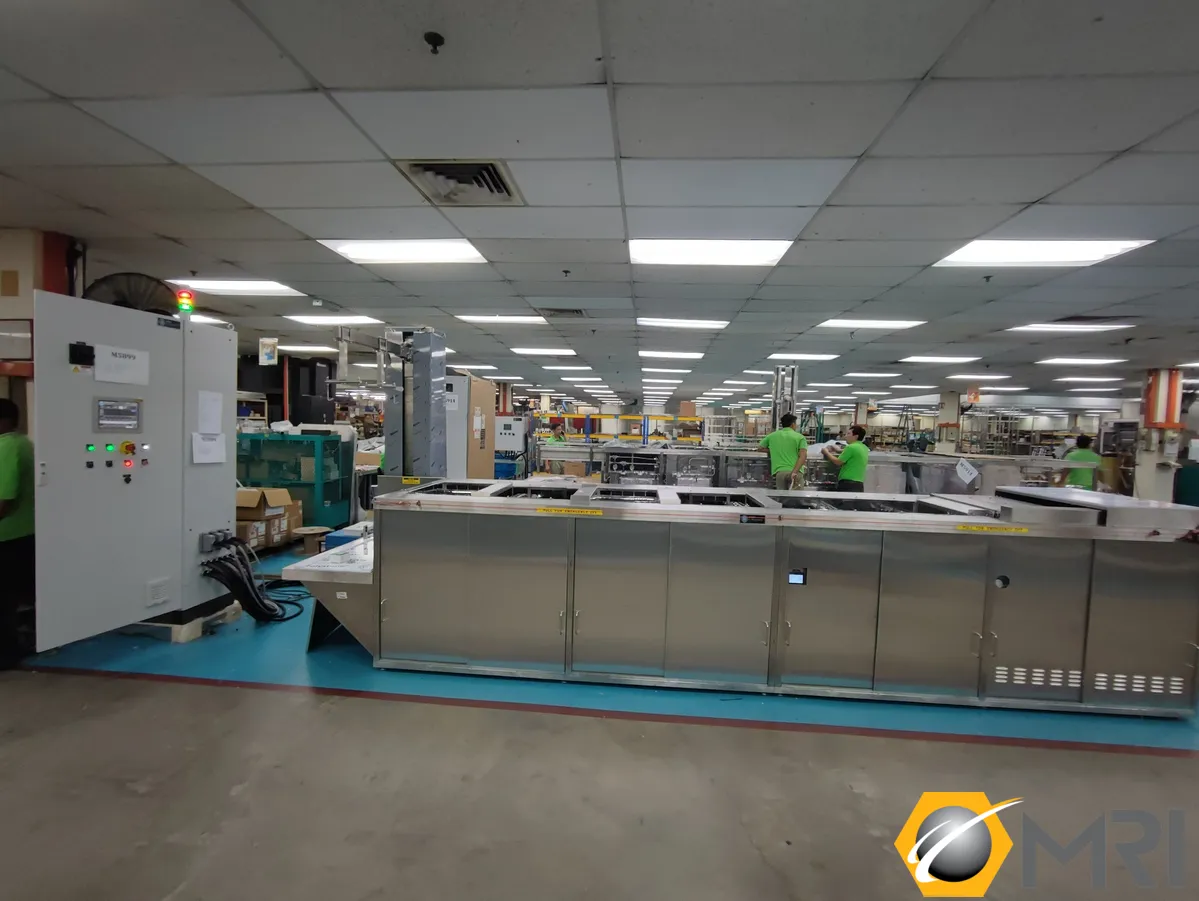

Photos are from Crest Demonstration Prior to Delivery ( Nov 2024 )

Process: Left to Right
Current set up as describes below - can be set up for passivation
6 Tanks / 8 Stations
Load - Chem-Crest Soy - Spray Rinse - Chem-Crest 275 - Rinse - Rinse - Dry - Unload

Chemistry:
Station #1: Chem-Crest Soy
Station #2, #4, and #5: Deionized Water.
Station #3: Chem-Crest 275
NOT MANUFACTURED FOR USE WITH ANY FLAMMABLE LIQUIDS.
Automation: Model CTS-2000, 200# cap
Facilities: 2-4 GPM (8-10 GPM on demand)

Station #1:
Ultrasonic Immersion Chem-Crest Soy
Maximum Temperature: 160 °F
Ultrasonic Frequency: 40 kHz
Ultrasonic Power: 1500 watts of ultrasonic power provided by (18) transducer
modules direct-bonded to the bottom of the tank, (2) ultrasonic generators.
Heat: 6000 watts of strip heat

Station #2: Spray-Over Rinse
Maximum Temperature: Ambient
Spray rinse: Stationary spray rinse package, with:
One (1) set of parallel-opposed spray rinse headers that are

Station #3:
Ultrasonic Immersion Chem-Crest 275
Maximum Temperature: 160 °F
Ultrasonic Frequency: 40 kHz
Ultrasonic Power: 1500 watts of ultrasonic power provided by:
(18) transducer modules direct-bonded to the bottom of the tank
(2) ultrasonic generators
Heat: 6000 watts of strip heat

Station #4:
Ultrasonic Spray-Over-Immersion Rinse
Maximum Temperature: 120 °F
Ultrasonic Frequency: 132 kHz
Ultrasonic Power: 1500 watts of ultrasonic power provided by:
(36) transducer modules direct-bonded to the bottom of the tank
(3) ultrasonic generators
Heat: 6000 watts of strip heat

Station #5:
Spray-Over-Immersion Rinse
Maximum Temperature: 120 °F
Ultrasonic Frequency: 132 kHz
Ultrasonic Power: 1500 watts of ultrasonic power provided by:
(36) transducer modules direct-bonded to the bottom of the tank
(3) ultrasonic generators are NOT included
Heat: 6000 watts of strip heat

Station #6:
High Temperature Recirculating Hot Air Dry
Maximum Temperature: 250 °F
Heat 12500 watts of heat
Temperature control:
PLC controls process temperature with a RTD-type temperature probe.
Blower: An 1100 CFM recirculating blower in the updraft orientation
Blow-off: A stationary blow-off package, with:
(1) set of parallel-opposed air blow-off headers at top of tank

Automation:
Model CTS-2000-AB CompactLogix-PROFACE Single Head Rigibo, 200# lift cap

********** For a full description OF OPTIONS & UPGRADES **********
********** click on the PDF file attached **********

ORIGINAL COST FOR THIS UNIT, AS OPTIONED OUT ........... $499,000
